Safety belt front for BMW 3 Series E90 LCI 330i (2011)

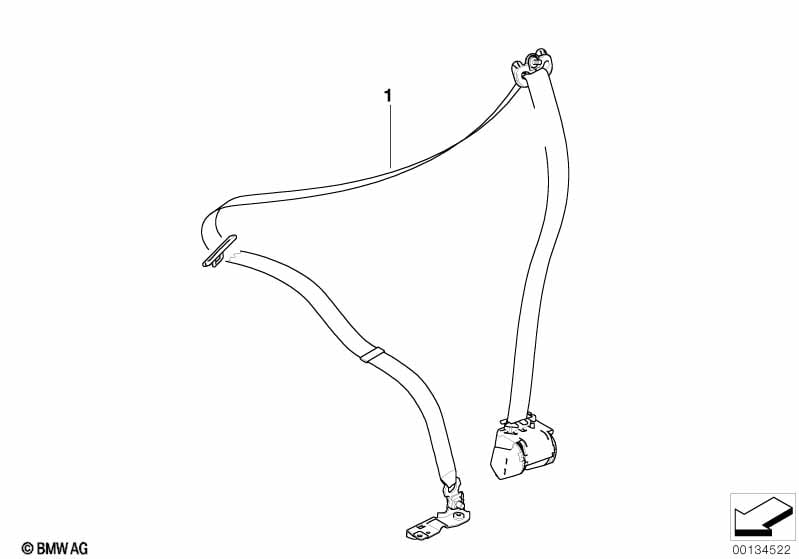

This Safety belt front technical drawing provides a detailed breakdown of the assembly for the 3 Series E90 LCI 330i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2011.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Attention Parts Manager. Per NHTSA regulations, please provide the applicable installation instructions to the customer when delivering the safety belt, and include all necessary information, e.g., tightening torques. Please refer to the BMW / MINI / Rolls- Royce Bulletins 000321 / 000221 / A0521, respectively. |
|||||||||
| 01 | Lft frnt upper belt with force limiter | SCHWARZ | 1 | 09/2010 | 72117234767 | Shop at ECS Tuning | ||||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| 01 | Rght frnt upper belt with force limiter | SCHWARZ | 1 | 09/2010 | 72117234768 | ENDED | Shop at ECS Tuning | |||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| For vehicles with beige |
B4=Yes |
|||||||||
| 01 | Lft frnt upper belt with force limiter | BEIGE | 1 | 09/2010 | 72117234771 | Shop at ECS Tuning | ||||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| 01 | Rght frnt upper belt with force limiter | BEIGE | 1 | 09/2010 | 72117234772 | Shop at ECS Tuning | ||||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| For vehicles with grey |
AD=Yes |
|||||||||
| 01 | Lft frnt upper belt with force limiter | GRAU | 1 | 09/2010 | 72117234769 | Shop at ECS Tuning | ||||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| 01 | Rght frnt upper belt with force limiter | GRAU | 1 | 09/2010 | 72117234770 | Shop at ECS Tuning | ||||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
Notes
- ENDED = the part has been discontinued (no longer available).
