Front safety belt mounting parts for BMW 3 Series E90 320d (2007)

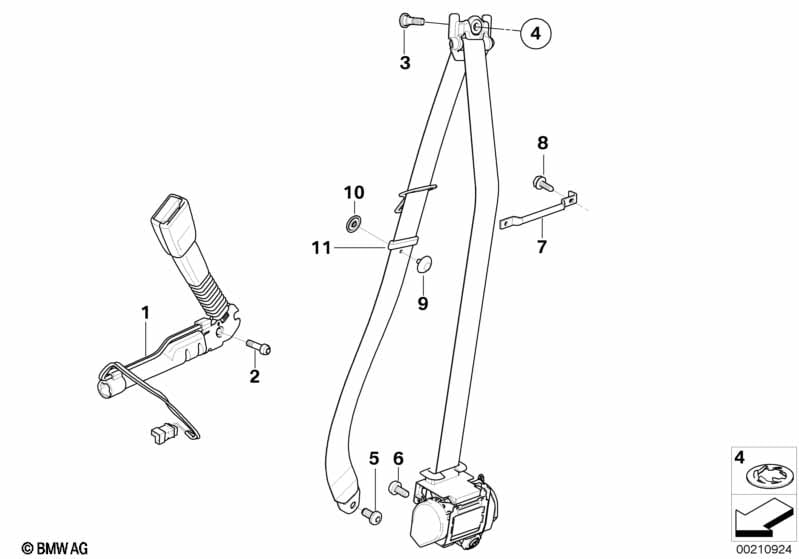

This Front safety belt mounting parts technical drawing provides a detailed breakdown of the assembly for the 3 Series E90 320d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2007.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Attention Parts Manager. Per NHTSA regulations, please provide the applicable installation instructions to the customer when delivering the safety belt, and include all necessary information, e.g., tightening torques. Please refer to the BMW / MINI / Rolls- Royce Bulletins 000321 / 000221 / A0521, respectively. |
|||||||||
| 01 | Lower belt with right belt tensioner | 1 | 04/2008 | 72119119542 | $117.98 | Shop at ECS Tuning | ||||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| 01 | Lower belt with right belt tensioner | 1 | 72117213564 | $117.98 | Shop at ECS Tuning | |||||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||

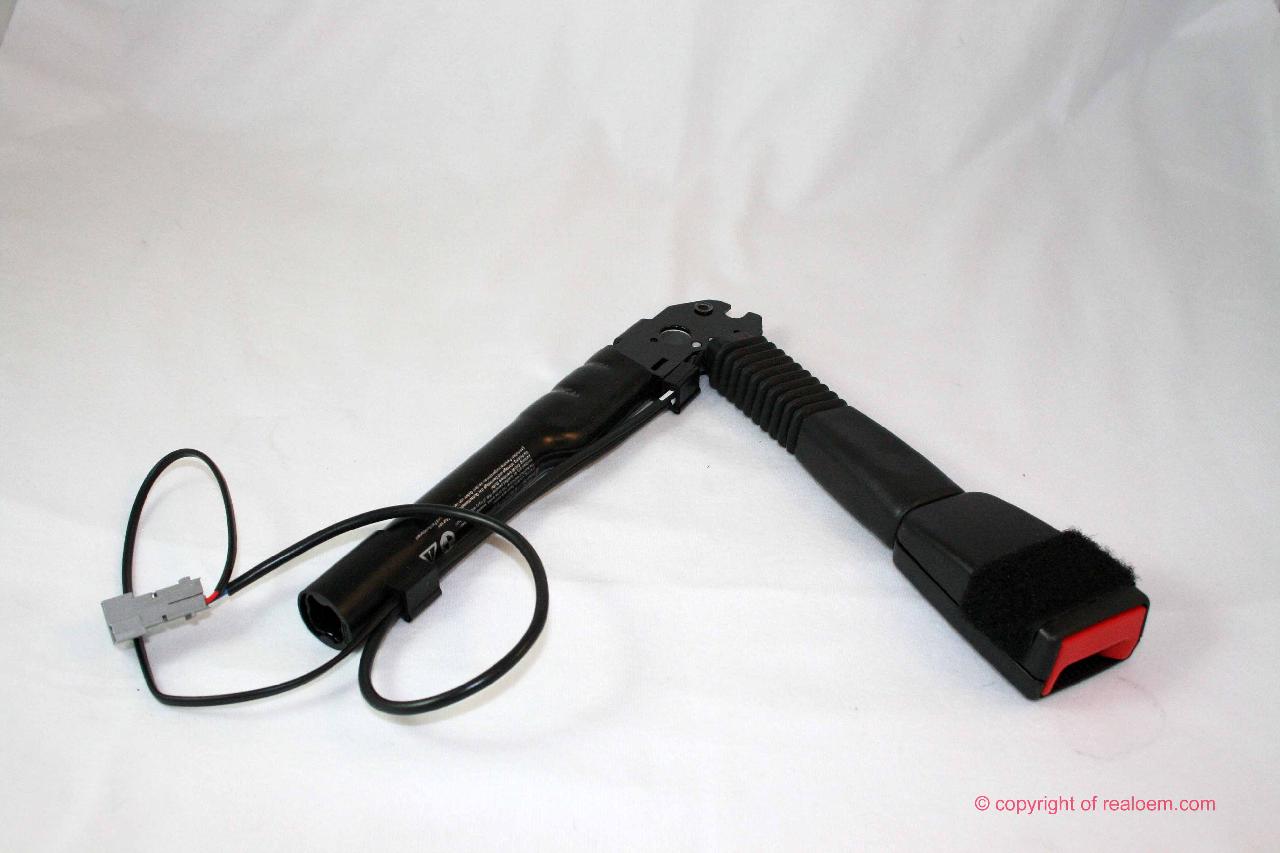

| 01 | Lower belt with left belt tensioner | 1 | 72117213563 | $117.98 | Shop at ECS Tuning | |||||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| 02 | Fillister-head screw | M10X22 | 2 | 07146960536 | $1.16 | Shop at ECS Tuning | ||||
| 03 | Socket head cap screw with shoulder | 2 | 72116985527 | $6.70 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Corrugated washer | 2 | 72116988009 | $1.84 | Shop at ECS Tuning | |||||
| 05 | Fillister-head screw | M10X15 | 2 | 07147122476 | $0.80 | Shop at ECS Tuning | ||||
| 06 | Fillister head screw | M10X26 | 2 | 07146962565 | $0.73 | Shop at ECS Tuning | ||||
| 06 | Fillister head screw with collar | M10X22 | 2 | 07147163333 | $1.16 | Shop at ECS Tuning | ||||
| 07 | Bow | 2 | 72119117185 | $1.77 | Shop at ECS Tuning | |||||
| 08 | Sheet metal screw | ST5,5X13 SW | 4 | 07119901338 | $0.29 | Shop at ECS Tuning | ||||
| 11 | Clamping | 2 | 72118469012 | Shop at ECS Tuning | ||||||
