Safety belt rear for BMW 1 Series E81 118d (2011)

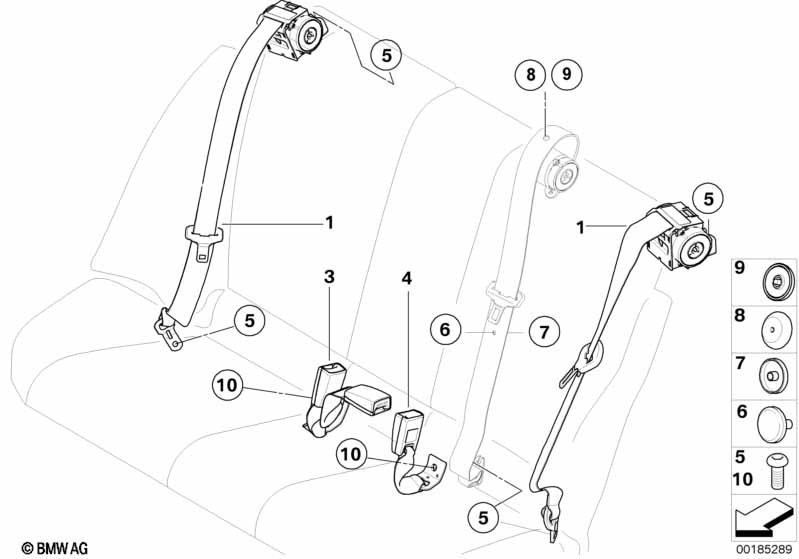

This Safety belt rear technical drawing provides a detailed breakdown of the assembly for the 1 Series E81 118d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2011.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Attention Parts Manager. Per NHTSA regulations, please provide the applicable installation instructions to the customer when delivering the safety belt, and include all necessary information, e.g., tightening torques. Please refer to the BMW / MINI / Rolls- Royce Bulletins 000321 / 000221 / A0521, respectively. |
|||||||||
| 01 | Upper belt rear | SCHWARZ | 2 | 02/2005 | 72119139832 | Shop at ECS Tuning | ||||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| Rear upper belt in center not available separately. If replacement is necessary, entire frame of left backrest with integrated belt must be replaced. (See Main Group 52) |
||||||||||
| 02 | Part not available separately | 1 | 00000000000 | Shop at ECS Tuning | ||||||
| 03 | Lower belt rear right | 1 | 03/2009 | 72117245663 | $69.05 | Shop at ECS Tuning | ||||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| For vehicles with National version japan or Taiwan version or National version China |
L807A=Yes L846A=Yes L8AAA=Yes |
|||||||||
| 03 | Lower belt rear right | 1 | 09/2009 | 72117245663 | $69.05 | Shop at ECS Tuning | ||||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| 04 | Lower strap, rear | LINKS | 1 | 72119117261 | $27.92 | Shop at ECS Tuning | ||||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| 05 | Fillister head screw | M10X26 | 4 | 07146962565 | $0.73 | Shop at ECS Tuning | ||||
| 10 | Fillister head screw | M12X27 | 2 | 07149144403 | $1.16 | Shop at ECS Tuning | ||||
