Protective covers for headliner for BMW 3 Series E46 325i (2005)

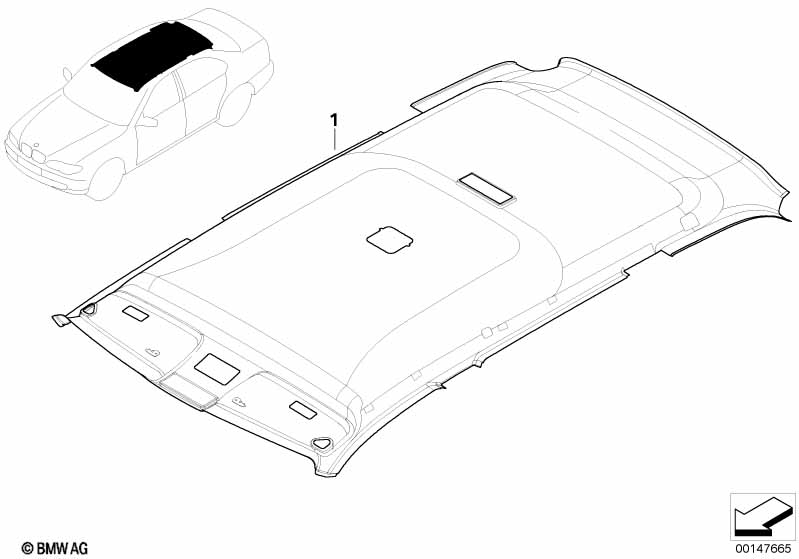

This Protective covers for headliner technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 325i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2005.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Protective mat with headliner | GRAU | 1 | 51447130782 | ENDED, +core | Shop at ECS Tuning | ||||
| 01 | Protective mat with headliner | BEIGE | 1 | 51447130783 | ENDED, +core | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E46 325i Protective covers for headliner?
- This technical diagram illustrates the Protective covers for headliner within the Restraint system and Accessories group for the 3 Series E46 325i produced during 2005. It provides a detailed exploded view of the components, identifying key parts such as the Protective mat with headliner (Part #51447130782).
- Which models use the hardware listed in this Protective covers for headliner?
- The hardware and components featured in the Protective covers for headliner are specific to the 3 Series E46 325i produced during 2005. These technical specifications ensure that parts like the Protective mat with headliner (51447130782) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Protective covers for headliner assembly?
- Each item in the Protective covers for headliner corresponds to the numbered list below the illustration. For the 3 Series E46 325i, you can identify the Protective mat with headliner by locating its position on the schematic, which then links to the official BMW part number 51447130782 for the Restraint system and Accessories section.
