Safety belt rear for BMW 3 Series E90 LCI 320d (2010)

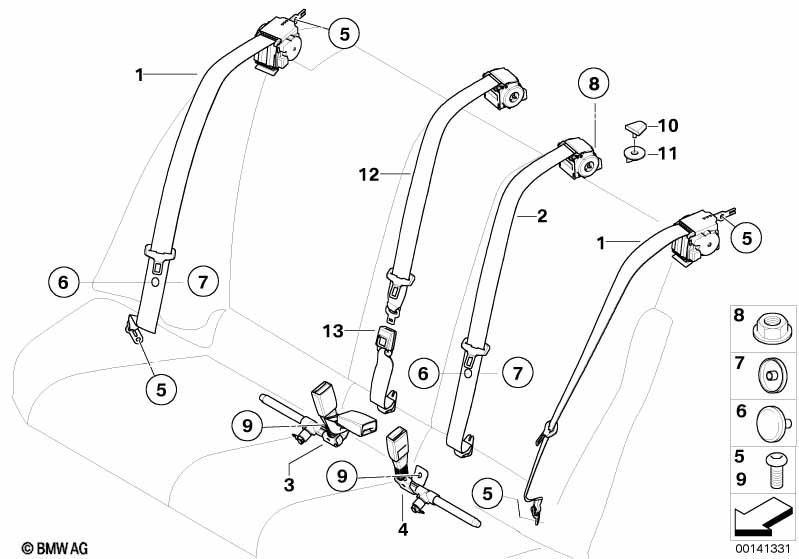

This Safety belt rear technical drawing provides a detailed breakdown of the assembly for the 3 Series E90 LCI 320d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2010.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Attention Parts Manager. Per NHTSA regulations, please provide the applicable installation instructions to the customer when delivering the safety belt, and include all necessary information, e.g., tightening torques. Please refer to the BMW / MINI / Rolls- Royce Bulletins 000321 / 000221 / A0521, respectively. |
|||||||||
| 01 | Upper belt rear | SCHWARZ | 1 | 03/2009 | 72117245883 | Shop at ECS Tuning | ||||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| For vehicles with beige |
B4=Yes |
|||||||||
| 01 | Upper belt rear | BEIGE | 1 | 03/2009 | 72117245882 | Shop at ECS Tuning | ||||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| For vehicles with National version japan or Taiwan version or National version China or Country-specific equipment Taiwan 04825 |
L807A=Yes L846A=Yes L8AAA=Yes S8LTA=Yes |
|||||||||
| 01 | Upper belt rear | SCHWARZ | 1 | 09/2009 | 72117245883 | Shop at ECS Tuning | ||||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| For vehicles with National version japan or Taiwan version or National version China or Country-specific equipment Taiwan 04825 and grey |
L807A=Yes L846A=Yes L8AAA=Yes S8LTA=Yes AD=Yes |
|||||||||
| 01 | Upper belt rear | GRAU | 1 | 03/2009 | 72117245881 | Shop at ECS Tuning | ||||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| 01 | Upper belt rear | GRAU | 1 | 09/2009 | 72117245881 | Shop at ECS Tuning | ||||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| For vehicles with National version japan or Taiwan version or National version China or Country-specific equipment Taiwan 04825 and beige |
L807A=Yes L846A=Yes L8AAA=Yes S8LTA=Yes B4=Yes |
|||||||||
| 01 | Upper belt rear | BEIGE | 1 | 09/2009 | 72117245882 | Shop at ECS Tuning | ||||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| 02 | REAR center UPPER BELT | SCHWARZ | 1 | 03/2009 | 72117245601 | Shop at ECS Tuning | ||||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| For vehicles with beige |
B4=Yes |
|||||||||
| 02 | REAR center UPPER BELT | BEIGE | 1 | 03/2009 | 72117245603 | Shop at ECS Tuning | ||||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| For vehicles with grey |
AD=Yes |
|||||||||
| 02 | REAR center UPPER BELT | GRAU | 1 | 03/2009 | 72117245602 | Shop at ECS Tuning | ||||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| For vehicles with National version japan or Taiwan version or National version China or Country-specific equipment Taiwan 04825 |
L807A=Yes L846A=Yes L8AAA=Yes S8LTA=Yes |
|||||||||
| 02 | REAR center UPPER BELT | SCHWARZ | 1 | 09/2009 | 72117245601 | Shop at ECS Tuning | ||||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| For vehicles with National version japan or Taiwan version or National version China or Country-specific equipment Taiwan 04825 and grey |
L807A=Yes L846A=Yes L8AAA=Yes S8LTA=Yes AD=Yes |
|||||||||
| 02 | REAR center UPPER BELT | GRAU | 1 | 09/2009 | 72117245602 | Shop at ECS Tuning | ||||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| For vehicles with National version japan or Taiwan version or National version China or Country-specific equipment Taiwan 04825 and beige |
L807A=Yes L846A=Yes L8AAA=Yes S8LTA=Yes B4=Yes |
|||||||||
| 02 | REAR center UPPER BELT | BEIGE | 1 | 09/2009 | 72117245603 | Shop at ECS Tuning | ||||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| 03 | Lower belt rear right | 1 | 05/2009 | 72117245663 | $69.05 | Shop at ECS Tuning | ||||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| For vehicles with National version japan or Taiwan version or National version China or Country-specific equipment Taiwan 04825 |
L807A=Yes L846A=Yes L8AAA=Yes S8LTA=Yes |
|||||||||
| 03 | Lower belt rear right | 1 | 09/2009 | 72117245663 | $69.05 | Shop at ECS Tuning | ||||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| 04 | Lower strap, rear | LINKS | 1 | 05/2009 | 72119117261 | $27.92 | Shop at ECS Tuning | |||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| For vehicles with National version japan or Taiwan version or National version China or Country-specific equipment Taiwan 04825 |
L807A=Yes L846A=Yes L8AAA=Yes S8LTA=Yes |
|||||||||
| 04 | Lower strap, rear | LINKS | 1 | 09/2009 | 72119117261 | $27.92 | Shop at ECS Tuning | |||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| 05 | Fillister head screw with collar | M10X22 | 5 | 07147163333 | $1.16 | Shop at ECS Tuning | ||||
| 08 | Hex nut | AM10-10-ZNS3 | 1 | 07129904865 | $1.00 | Shop at ECS Tuning | ||||
| 09 | Fillister head screw | M12X27 | 2 | 07149144403 | $1.16 | Shop at ECS Tuning | ||||
| For vehicles with Through-loading system |
S465A=Yes |
|||||||||
| 10 | Cap, lock tongue | SCHWARZ | 1 | 51468208863 | $1.10 | Shop at ECS Tuning | ||||
| 11 | Wing nut | M8 | 1 | 51461973909 | $0.50 | Shop at ECS Tuning | ||||
| 12 | Top belt, rear center with sep. buckle | SCHWARZ | 1 | 03/2009 | 72117245605 | ENDED | Shop at ECS Tuning | |||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| For vehicles with Through-loading system and beige |
S465A=Yes B4=Yes |
|||||||||
| 12 | Top belt, rear center with sep. buckle | BEIGE | 1 | 03/2009 | 72117245607 | Shop at ECS Tuning | ||||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| For vehicles with Through-loading system and grey |
S465A=Yes AD=Yes |
|||||||||
| 12 | Top belt, rear center with sep. buckle | GRAU | 1 | 03/2009 | 72117245606 | Shop at ECS Tuning | ||||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| For vehicles with National version japan and Taiwan version and National version China and Through-loading system and Country-specific equipment Taiwan 04825 |
L807A=Yes L846A=Yes L8AAA=Yes S465A=Yes S8LTA=Yes |
|||||||||
| 12 | Top belt, rear center with sep. buckle | SCHWARZ | 1 | 09/2009 | 72117245605 | ENDED | Shop at ECS Tuning | |||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| For vehicles with National version japan and Taiwan version and National version China and Through-loading system and Country-specific equipment Taiwan 04825 and beige |
L807A=Yes L846A=Yes L8AAA=Yes S465A=Yes S8LTA=Yes B4=Yes |
|||||||||
| 12 | Top belt, rear center with sep. buckle | BEIGE | 1 | 09/2009 | 72117245607 | Shop at ECS Tuning | ||||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| For vehicles with National version japan and Taiwan version and National version China and Through-loading system and Country-specific equipment Taiwan 04825 and grey |
L807A=Yes L846A=Yes L8AAA=Yes S465A=Yes S8LTA=Yes AD=Yes |
|||||||||
| 12 | Top belt, rear center with sep. buckle | GRAU | 1 | 09/2009 | 72117245606 | Shop at ECS Tuning | ||||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| For vehicles with Through-loading system |
S465A=Yes |
|||||||||
| 13 | Lower strap, rear cent. w. sep. buckle | SCHWARZ | 1 | 72119138232 | $18.68 | Shop at ECS Tuning | ||||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| For vehicles with Through-loading system and beige |
S465A=Yes B4=Yes |
|||||||||
| 13 | Lower strap, rear cent. w. sep. buckle | BEIGE | 1 | 09/2008 | 72119160117 | $18.68 | Shop at ECS Tuning | |||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| For vehicles with Through-loading system and grey |
S465A=Yes AD=Yes |
|||||||||
| 13 | Lower strap, rear cent. w. sep. buckle | GRAU | 1 | 09/2008 | 72119160116 | $18.68 | Shop at ECS Tuning | |||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
Notes
- ENDED = the part has been discontinued (no longer available).
