Support, child seat for BMW 3 Series E90 LCI 325xi (2011)

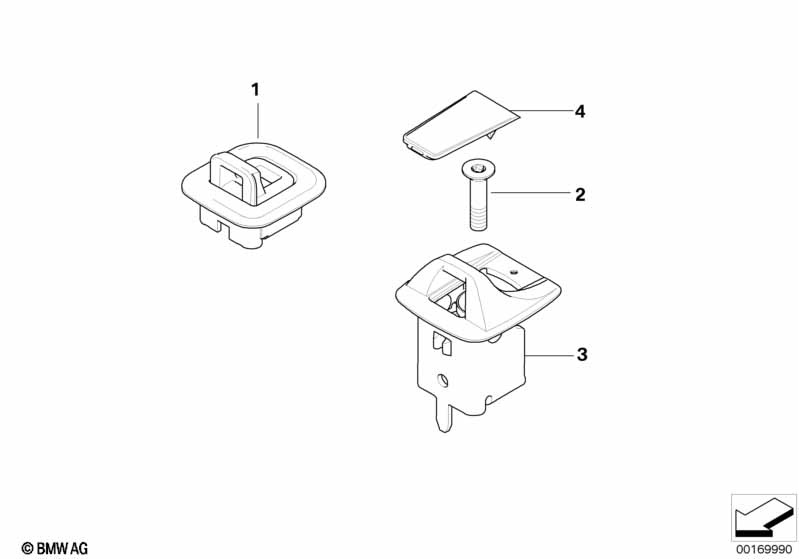

This Support, child seat technical drawing provides a detailed breakdown of the assembly for the 3 Series E90 LCI 325xi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2011.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 02 | Socket head cap screw with shoulder | X | 07147124153 | $2.25 | Shop at ECS Tuning | |||||
| 03 | Child seat holder | SCHWARZ | X | 72149119678 | $10.97 | Shop at ECS Tuning | ||||
| For vehicles with cream-beige |
GE=Yes |
|||||||||
| 03 | Child seat holder | CREAMBEIGE | X | 72149182465 | $10.97 | Shop at ECS Tuning | ||||
| For vehicles with beige |
B4=Yes |
|||||||||
| 03 | Child seat holder | BEIGE | X | 72149133958 | $10.97 | Shop at ECS Tuning | ||||
| For vehicles with grey |
AD=Yes |
|||||||||
| 03 | Child seat holder | GRAU | X | 72149133957 | $10.97 | Shop at ECS Tuning | ||||
| 04 | Covering cap | SCHWARZ | X | 72149119698 | $1.68 | Shop at ECS Tuning | ||||
| For vehicles with cream-beige |
GE=Yes |
|||||||||
| 04 | Covering cap | CREAMBEIGE | X | 72149182466 | $1.68 | Shop at ECS Tuning | ||||
| For vehicles with beige |
B4=Yes |
|||||||||
| 04 | Covering cap | BEIGE | X | 72149133980 | $1.68 | Shop at ECS Tuning | ||||
| For vehicles with grey |
AD=Yes |
|||||||||
| 04 | Covering cap | GRAU | X | 72149133979 | $1.68 | Shop at ECS Tuning | ||||
