Safety belt front for BMW 3 Series E92 LCI 325xi (2013)

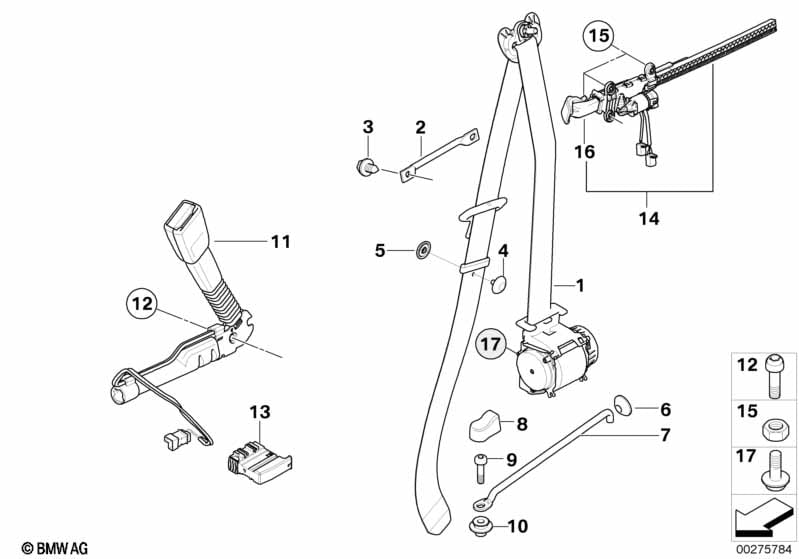

This Safety belt front technical drawing provides a detailed breakdown of the assembly for the 3 Series E92 LCI 325xi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2013.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Attention Parts Manager. Per NHTSA regulations, please provide the applicable installation instructions to the customer when delivering the safety belt, and include all necessary information, e.g., tightening torques. Please refer to the BMW / MINI / Rolls- Royce Bulletins 000321 / 000221 / A0521, respectively. |
|||||||||
| 01 | Lft frnt upper belt with force limiter | SCHWARZ | 1 | 72119138243 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Spacer bush | 1 | 72117294366 | Shop at ECS Tuning | ||||||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| 01 | Rght frnt upper belt with force limiter | SCHWARZ | 1 | 72119138246 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Spacer bush | 1 | 72117294366 | Shop at ECS Tuning | ||||||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| For vehicles with cream-beige |
GE=Yes |
|||||||||
| 01 | Lft frnt upper belt with force limiter | CREME BEIGE | 1 | 72119138241 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| 01 | Rght frnt upper belt with force limiter | CREME BEIGE | 1 | 72119138244 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Spacer bush | 1 | 72117294366 | Shop at ECS Tuning | ||||||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| For vehicles with grey |
AD=Yes |
|||||||||
| 01 | Lft frnt upper belt with force limiter | GRAU | 1 | 72119138239 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| 01 | Rght frnt upper belt with force limiter | GRAU | 1 | 72119138242 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Spacer bush | 1 | 72117294366 | Shop at ECS Tuning | ||||||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| 02 | Bow | 2 | 72116977811 | $1.23 | Shop at ECS Tuning | |||||
| 03 | Sheet metal screw | ST5,5X16 SW | 4 | 07119901339 | $0.25 | Shop at ECS Tuning | ||||
| 06 | Covering cap | 2 | 72118173746 | $1.17 | Shop at ECS Tuning | |||||
| 07 | Sliding bracket | 2 | 72117119385 | $8.18 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Spacer bush | 2 | 72117294366 | Shop at ECS Tuning | ||||||
| 08 | Covering cap | 2 | 72117069963 | $1.00 | Shop at ECS Tuning | |||||
| 09 | Fillister head screw | M10X45 | 2 | 07149121882 | $1.42 | Shop at ECS Tuning | ||||
| 10 | Bush | 2 | 72117113612 | $5.40 | Shop at ECS Tuning | |||||
| 11 | Lower belt with right belt tensioner | 1 | 72117213564 | $117.98 | Shop at ECS Tuning | |||||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| 11 | Lower belt with left belt tensioner | 1 | 72117213563 | $117.98 | Shop at ECS Tuning | |||||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| 12 | Fillister-head screw | M10X22 | 2 | 07146960536 | $1.16 | Shop at ECS Tuning | ||||
| 13 | Covering cap | 2 | 61136954587 | $3.85 | Shop at ECS Tuning | |||||
| 14 | Belt-handover, left | 1 | 09/2007 | 72117330779 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| 14 | Belt-handover, right | 1 | 09/2007 | 72117330780 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Spacer bush | 1 | 09/2007 | 72117294366 | Shop at ECS Tuning | |||||
| 15 | Combination nut | M5 SCHWARZ | 6 | 07149130265 | $1.48 | Shop at ECS Tuning | ||||
| 16 | Hand, belt extender, left | 1 | 09/2007 | 72117330781 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| 16 | Hand, belt extender, right | 1 | 09/2007 | 72117330782 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Spacer bush | 1 | 09/2007 | 72117294366 | Shop at ECS Tuning | |||||
| 17 | Fillister head screw | M10X26 | 2 | 07146962565 | $0.73 | Shop at ECS Tuning | ||||
