Safety belt front for BMW 3 Series E93 LCI 325i (2013)

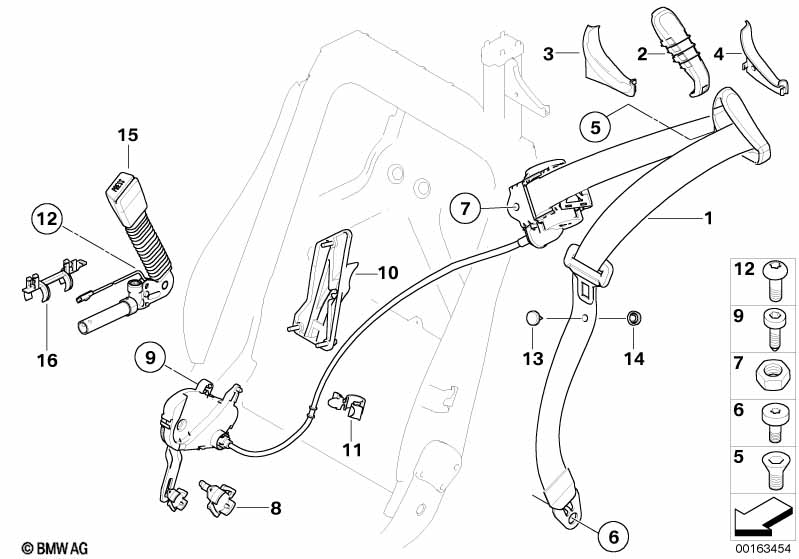

This Safety belt front technical drawing provides a detailed breakdown of the assembly for the 3 Series E93 LCI 325i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2013.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Attention Parts Manager. Per NHTSA regulations, please provide the applicable installation instructions to the customer when delivering the safety belt, and include all necessary information, e.g., tightening torques. Please refer to the BMW / MINI / Rolls- Royce Bulletins 000321 / 000221 / A0521, respectively. |
|||||||||
| For vehicles with cream-beige |
GE=Yes |
|||||||||
| 01 | Upper belt front left | CREAMBEIGE | 1 | 08/2010 | 72117266447 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Coupler mechanism left | 1 | 08/2010 | 52109113981 | Shop at ECS Tuning | |||||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| 01 | Upper belt, front right | CREAMBEIGE | 1 | 08/2010 | 72117266448 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Coupler mechanism right | 1 | 08/2010 | 52109113982 | Shop at ECS Tuning | |||||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| For vehicles with grey |
AD=Yes |
|||||||||
| 01 | Upper belt front left | GRAU | 1 | 08/2010 | 72117266449 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Coupler mechanism left | 1 | 08/2010 | 52109113981 | Shop at ECS Tuning | |||||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| 01 | Upper belt, front right | GRAU | 1 | 08/2010 | 72117266450 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Coupler mechanism right | 1 | 08/2010 | 52109113982 | Shop at ECS Tuning | |||||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| For vehicles with grey and cream-beige |
AD=No GE=No |
|||||||||
| 01 | Upper belt front left | SCHWARZ | 1 | 08/2010 | 72117266445 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Coupler mechanism left | 1 | 08/2010 | 52109113981 | Shop at ECS Tuning | |||||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| 01 | Upper belt, front right | SCHWARZ | 1 | 08/2010 | 72117266446 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Coupler mechanism right | 1 | 08/2010 | 52109113982 | Shop at ECS Tuning | |||||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| 03 | Covering front | SCHWARZ | 2 | 09/2008 | 52108267426 | $2.24 | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Covering rear | SCHWARZ | 2 | 09/2008 | 52108267430 | $2.24 | Shop at ECS Tuning | |||
| 04 | Covering rear | SCHWARZ | 2 | 09/2008 | 52108267430 | $2.24 | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Covering front | SCHWARZ | 2 | 09/2008 | 52108267426 | $2.24 | Shop at ECS Tuning | |||
| 05 | Torx bolt | M6X10 T30 | 2 | 07149158703 | $0.56 | Shop at ECS Tuning | ||||
| 06 | Fillister-head screw | M10X22 | 2 | 52109113418 | $1.89 | Shop at ECS Tuning | ||||
| 07 | Hex nut | M10-8 | 2 | 07119906478 | $0.58 | Shop at ECS Tuning | ||||
| 08 | Connecting elements | 2 | 52106971285 | $1.09 | Shop at ECS Tuning | |||||
| 09 | Fillister-head screw | 2 | 07149166340 | Shop at ECS Tuning | ||||||
| 10 | Supporting plate left | 1 | 52107065719 | $2.79 | Shop at ECS Tuning | |||||
| 10 | Supporting plate right | 1 | 52107065720 | $1.95 | Shop at ECS Tuning | |||||
| 11 | Clip | 2 | 52107008593 | $0.35 | Shop at ECS Tuning | |||||
| 12 | Oval head screw | M10 X 22 | 2 | 07149148313 | $1.27 | Shop at ECS Tuning | ||||
| 15 | Lower belt with left belt tensioner | 1 | 72119177771 | $147.52 | Shop at ECS Tuning | |||||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| 15 | Lower belt with right belt tensioner | 1 | 72119177772 | $147.52 | Shop at ECS Tuning | |||||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| 16 | Clip, belt tensioner | 2 | 52108099498 | $1.03 | Shop at ECS Tuning | |||||
