Safety belt for BMW 2.5CS-3.0CSL 3.0CSiL (1975)

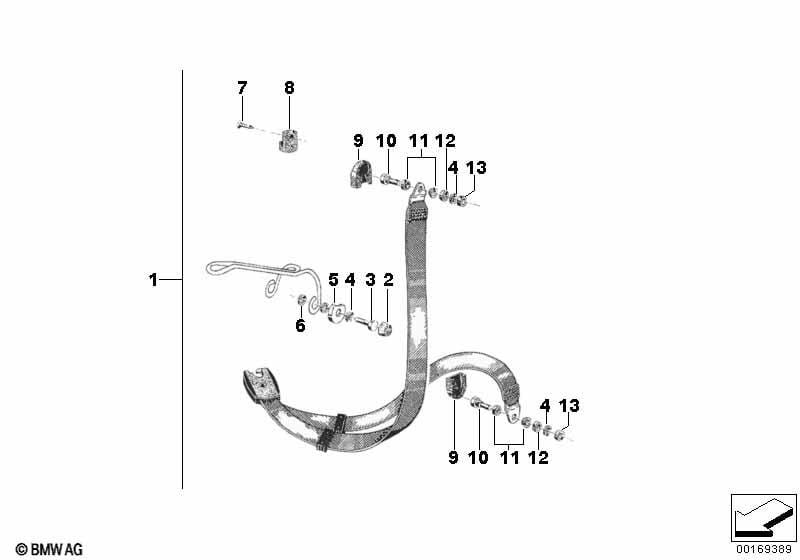

This Safety belt technical drawing provides a detailed breakdown of the assembly for the 2.5CS-3.0CSL 3.0CSiL. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1975.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Safety belt front | 1 | 72119058999 | $130.61 | ENDED | Shop at ECS Tuning | ||||
| 02 | Covering cap | ANTHRAZIT | 2 | 72111808464 | $0.63 | ENDED | Shop at ECS Tuning | |||
| 03 | Screw | 2 | 72111808462 | ENDED | Shop at ECS Tuning | |||||
| 04 | Wave washer | 11,2 / 19 | 10 | 72111808672 | $0.17 | Shop at ECS Tuning | ||||
| 05 | Bow | 2 | 72111808463 | ENDED | Shop at ECS Tuning | |||||
| 06 | Spacer | 4 | 72111808461 | ENDED | Shop at ECS Tuning | |||||
| 07 | Recessed oval head sheet-metal screw | ST4,8X19 | 2 | 07119902483 | $1.64 | Shop at ECS Tuning | ||||
| 08 | Holder | 1 | 72111814712 | ENDED | Shop at ECS Tuning | |||||
| 09 | Covering cap | 6 | 72111808447 | ENDED | Shop at ECS Tuning | |||||
| 11 | Bush | 12 | 72111802802 | ENDED | Shop at ECS Tuning | |||||
| 12 | Washer | 6 | 72111808673 | $0.37 | Shop at ECS Tuning | |||||
| 13 | Spacer bush | 6 | 72111802803 | $0.77 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 2.5CS-3.0CSL 3.0CSiL Safety belt?
- This technical diagram illustrates the Safety belt within the Restraint system and Accessories group for the 2.5CS-3.0CSL 3.0CSiL produced during 1975. It provides a detailed exploded view of the components, identifying key parts such as the Safety belt front (Part #72119058999).
- Which models use the hardware listed in this Safety belt?
- The hardware and components featured in the Safety belt are specific to the 2.5CS-3.0CSL 3.0CSiL produced during 1975. These technical specifications ensure that parts like the Safety belt front (72119058999) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Safety belt assembly?
- Each item in the Safety belt corresponds to the numbered list below the illustration. For the 2.5CS-3.0CSL 3.0CSiL, you can identify the Safety belt front by locating its position on the schematic, which then links to the official BMW part number 72119058999 for the Restraint system and Accessories section.
