Ski bag, single parts for BMW 3 Series E30 325e (1987)

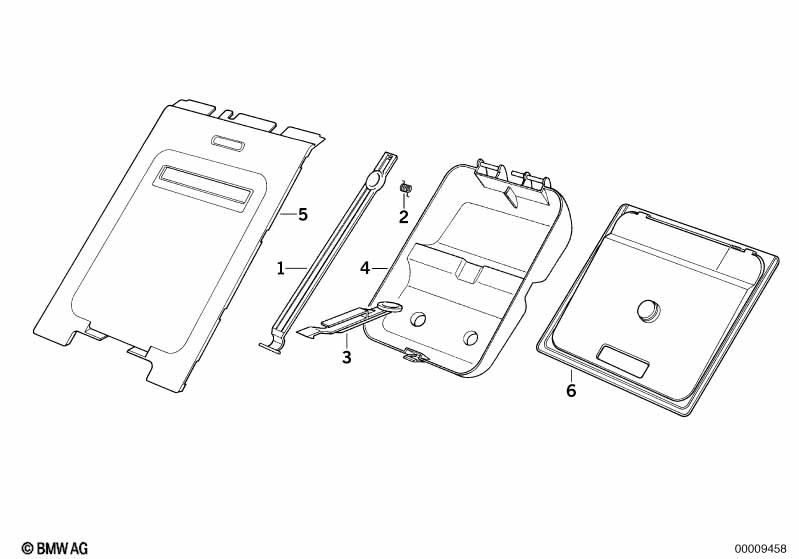

This Ski bag, single parts technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 325e. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1987.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Bow | 1 | 72608111914 | $6.60 | Shop at ECS Tuning | |||||
| 02 | Spring | 1 | 72608106896 | $2.12 | Shop at ECS Tuning | |||||
| 03 | Lock | 1 | 72608111916 | $2.95 | Shop at ECS Tuning | |||||
| 04 | Cover | 1 | 72608145540 | $41.72 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
