Rear window studs for BMW 7 Series F03 760LiS

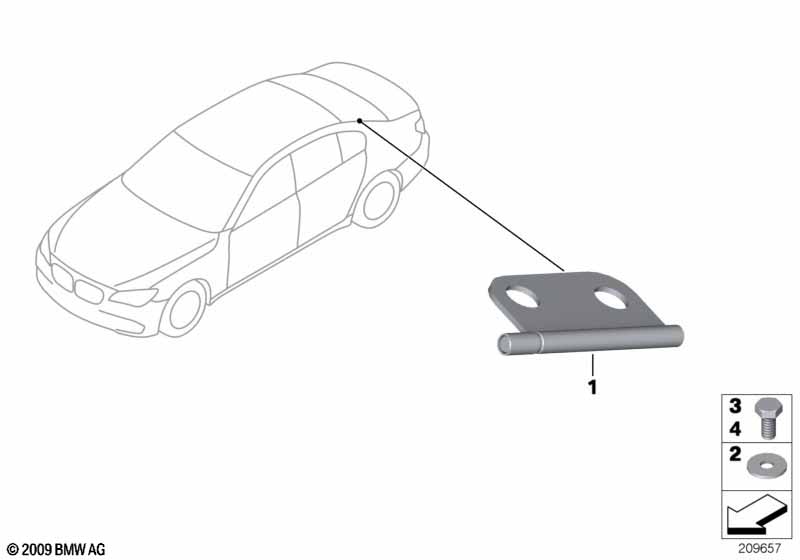

This Rear window studs technical drawing provides a detailed breakdown of the assembly for the 7 Series F03 760LiS. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Package contents, rear window studs | 1 | 67117230608 | Shop at ECS Tuning | ||||||
| 02 | Washer | 22X8,4X2-ZNS3 | 8 | 07149145864 | Shop at ECS Tuning | |||||
| 03 | Hex bolt | M8X16-8.8-ZNS3 | 8 | 07119902900 | $0.36 | Shop at ECS Tuning | ||||
| 04 | Hex bolt | M5X10 | 2 | 07119904442 | $0.80 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series F03 760LiS Rear window studs?
- This technical diagram illustrates the Rear window studs within the Restraint system and Accessories group for the 7 Series F03 760LiS. It provides a detailed exploded view of the components, identifying key parts such as the Package contents, rear window studs (Part #67117230608).
- Which models use the hardware listed in this Rear window studs?
- The hardware and components featured in the Rear window studs are specific to the 7 Series F03 760LiS. These technical specifications ensure that parts like the Package contents, rear window studs (67117230608) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Rear window studs assembly?
- Each item in the Rear window studs corresponds to the numbered list below the illustration. For the 7 Series F03 760LiS, you can identify the Package contents, rear window studs by locating its position on the schematic, which then links to the official BMW part number 67117230608 for the Restraint system and Accessories section.
