Safety belt for BMW 7 Series E32 730i (1994)

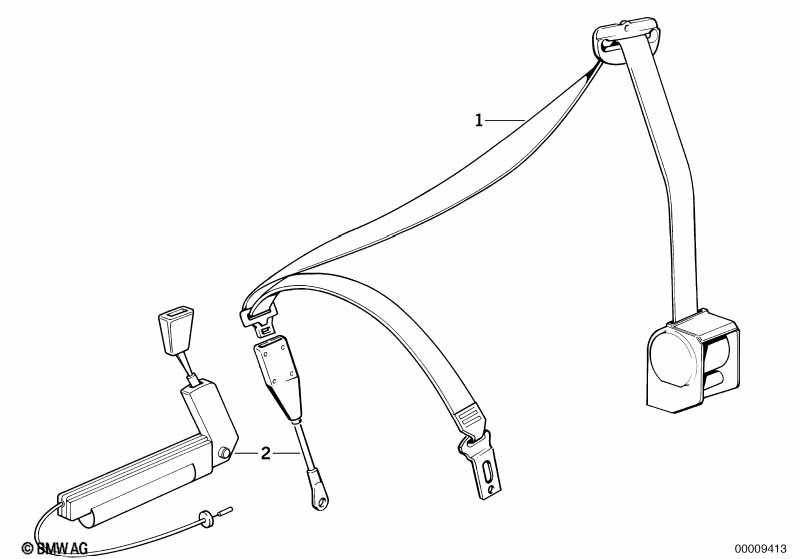

This Safety belt technical drawing provides a detailed breakdown of the assembly for the 7 Series E32 730i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1994.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Upper belt front left | 1 | 09/1992 | 72118164161 | ENDED | Shop at ECS Tuning | ||||
| 01 | Upper belt, front right | 1 | 09/1992 | 72118164162 | ENDED | Shop at ECS Tuning | ||||
| 01 | Upper belt front left | ULTRAMARIN | 1 | 09/1992 | 72118164223 | $127.78 | ENDED | Shop at ECS Tuning | ||
| 01 | Upper belt, front right | ULTRAMARIN | 1 | 09/1992 | 72118164224 | $135.33 | Shop at ECS Tuning | |||
| 01 | Upper belt front left | SILBERGRAU | 1 | 09/1992 | 72118164829 | $135.33 | ENDED | Shop at ECS Tuning | ||
| 01 | Upper belt front left | 1 | 09/1992 | 72118167981 | +core | Shop at ECS Tuning | ||||
| 01 | Upper belt, front right | 1 | 09/1992 | 72118167982 | Shop at ECS Tuning | |||||
| 02 | Lower belt with left belt tensioner | 1 | 09/1993 | 72118167719 | $188.25 | Shop at ECS Tuning | ||||
| 02 | Lower belt with right belt tensioner | 1 | 09/1993 | 72118167720 | $188.25 | Shop at ECS Tuning | ||||
| For vehicles with Seat, electrically adjustable |
=Yes |
|||||||||
| 02 | Lower belt with left belt tensioner | 1 | 09/1993 | 72118167721 | $188.25 | Shop at ECS Tuning | ||||
| 02 | Lower belt with right belt tensioner | 1 | 09/1993 | 72118167722 | $188.25 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
