Safety belt front for BMW 5 Series F11 528i (2011)

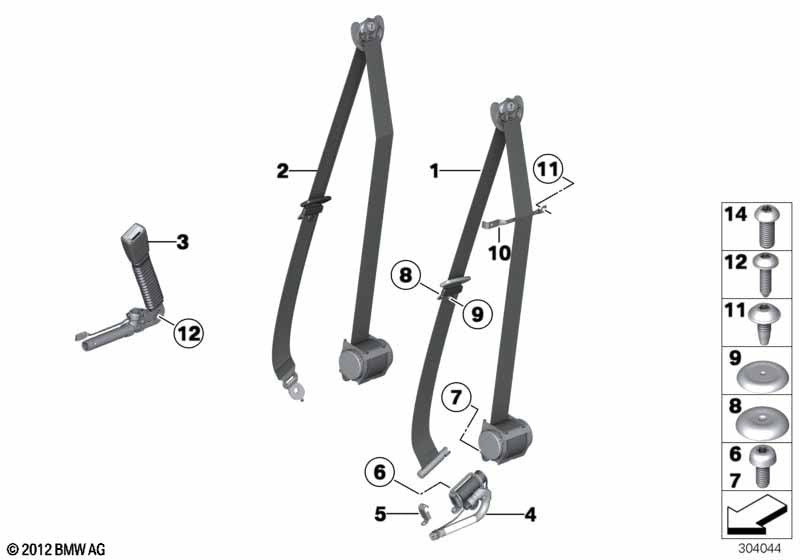

This Safety belt front technical drawing provides a detailed breakdown of the assembly for the 5 Series F11 528i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2011.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Attention Parts Manager. Per NHTSA regulations, please provide the applicable installation instructions to the customer when delivering the safety belt, and include all necessary information, e.g., tightening torques. Please refer to the BMW / MINI / Rolls- Royce Bulletins 000321 / 000221 / A0521, respectively. For vehicles with Active Protection |
S5ALA=No |
||||||||
| 01 | Upper belt, front right | SCHWARZ | 1 | 72119164058 | Shop at ECS Tuning | |||||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| For vehicles with everest-grau |
DE=Yes |
|||||||||
| 01 | Upper belt, front right | EVERESTGRAU | 1 | 72119164508 | Shop at ECS Tuning | |||||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| For vehicles with elfenbein-weiss |
EW=Yes |
|||||||||
| 01 | Upper belt, front right | ELFENBEINWEISS | 1 | 72117355252 | Shop at ECS Tuning | |||||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| For vehicles with Fabric "diagonal/veneto-beige" or Imit. leather "Leatherette/veneto-beige" or Leather "Dakota/veneto-beige" or Leather Dakota/veneto-beige/excl. seam |
AWDF=Yes K8DF=Yes LCDF=Yes LCLY=Yes |
|||||||||
| 01 | Upper belt, front right | VENETOBEIGE | 1 | 72119164506 | Shop at ECS Tuning | |||||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| For vehicles with oyster or oyster/oyster or oyster Exclusive seam or oyster Exclusive seam or oyster Exclusive seam |
CX=Yes DH=Yes OT=Yes OU=Yes OX=Yes |
|||||||||
| 01 | Upper belt, front right | OYSTER71 | 1 | 72119164510 | Shop at ECS Tuning | |||||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| 02 | Upper belt front left | SCHWARZ | 1 | 72119164057 | Shop at ECS Tuning | |||||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| For vehicles with everest-grau |
DE=Yes |
|||||||||
| 02 | Upper belt front left | EVERESTGRAU | 1 | 72119164507 | Shop at ECS Tuning | |||||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| For vehicles with elfenbein-weiss |
EW=Yes |
|||||||||
| 02 | Upper belt front left | ELFENBEINWEISS | 1 | 72117330697 | Shop at ECS Tuning | |||||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| For vehicles with Fabric "diagonal/veneto-beige" or Imit. leather "Leatherette/veneto-beige" or Leather "Dakota/veneto-beige" or Leather Dakota/veneto-beige/excl. seam |
AWDF=Yes K8DF=Yes LCDF=Yes LCLY=Yes |
|||||||||
| 02 | Upper belt front left | VENETOBEIGE | 1 | 72119164505 | Shop at ECS Tuning | |||||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| For vehicles with oyster or oyster/oyster or oyster Exclusive seam or oyster Exclusive seam or oyster Exclusive seam |
CX=Yes DH=Yes OT=Yes OU=Yes OX=Yes |
|||||||||
| 02 | Upper belt front left | OYSTER71 | 1 | 72119164509 | Shop at ECS Tuning | |||||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| 03 | Lower belt with left belt tensioner | 1 | 07/2013 | 72119115305 | $138.94 | Shop at ECS Tuning | ||||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| 03 | Lower belt with right belt tensioner | 1 | 07/2013 | 72119115306 | $138.94 | Shop at ECS Tuning | ||||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| 04 | Anchor fitting pretensioner, right | 1 | 72117211594 | Shop at ECS Tuning | ||||||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| 05 | Securing plate | 1 | 72119140944 | Shop at ECS Tuning | ||||||
| 06 | Fillister head screw | M10X22 | 2 | 07149148299 | Shop at ECS Tuning | |||||
| 07 | Fillister head screw | M10X22 | 2 | 07149148299 | Shop at ECS Tuning | |||||
| 10 | Sliding bracket | 2 | 72119115437 | $2.22 | Shop at ECS Tuning | |||||
| 11 | Sheet metal screw | ISA M5X12 | 4 | 07149158177 | $0.25 | Shop at ECS Tuning | ||||
| 12 | Fillister head screw | M10X 22MM | 2 | 07146989597 | $1.16 | Shop at ECS Tuning | ||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series F11 528i Safety belt front?
- This technical diagram illustrates the Safety belt front within the Restraint system and Accessories group for the 5 Series F11 528i produced during 2011. It provides a detailed exploded view of the components, identifying key parts such as the Upper belt, front right (Part #72119164058).
- Which models use the hardware listed in this Safety belt front?
- The hardware and components featured in the Safety belt front are specific to the 5 Series F11 528i produced during 2011. These technical specifications ensure that parts like the Upper belt, front right (72119164058) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Safety belt front assembly?
- Each item in the Safety belt front corresponds to the numbered list below the illustration. For the 5 Series F11 528i, you can identify the Upper belt, front right by locating its position on the schematic, which then links to the official BMW part number 72119164058 for the Restraint system and Accessories section.
