Flag holder for BMW 5 Series F10 525d

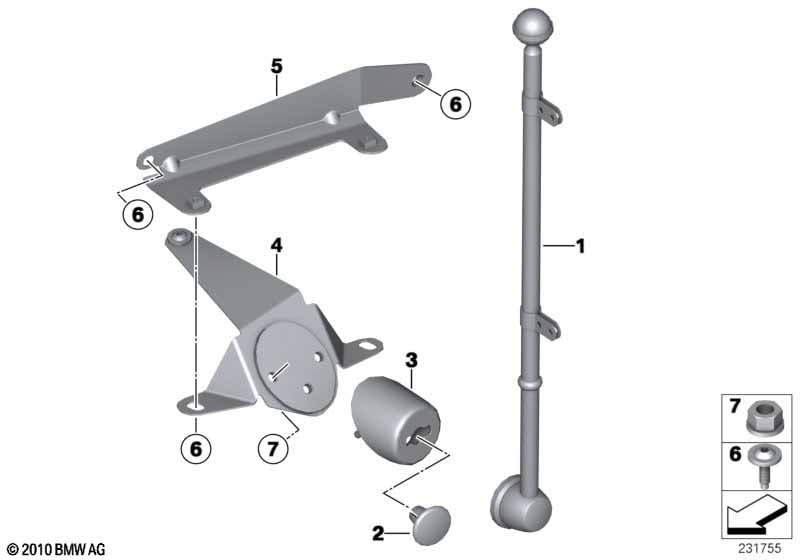

This Flag holder technical drawing provides a detailed breakdown of the assembly for the 5 Series F10 525d. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Attention! The use of the pennant holder in public areas around the vehicle is only permitted with individual approval / attachment approval and approval by the respective regulatory agency. |
|||||||||
| For vehicles with Banner staff, right |
S117A=Yes |
|||||||||
| 01 | Flag holder | 1 | 72601878398 | $280.78 | Shop at ECS Tuning | |||||
| For vehicles with Banner staff, left |
S116A=Yes |
|||||||||
| 01 | Flag holder | 1 | 72601878398 | $280.78 | Shop at ECS Tuning | |||||
| For vehicles with Banner staff, right |
S117A=Yes |
|||||||||
| 02 | Blind plug | 1 | 72601860157 | $6.60 | Shop at ECS Tuning | |||||
| For vehicles with Banner staff, left |
S116A=Yes |
|||||||||
| 02 | Blind plug | 1 | 72601860157 | $6.60 | Shop at ECS Tuning | |||||
| For vehicles with Banner staff, right |
S117A=Yes |
|||||||||
| 03 | Base plate right | 1 | 72607267464 | +core | Shop at ECS Tuning | |||||
| For vehicles with Banner staff, left |
S116A=Yes |
|||||||||
| 03 | Base plate left | 1 | 72607267463 | +core | Shop at ECS Tuning | |||||
| For vehicles with Banner staff, right |
S117A=Yes |
|||||||||
| 04 | Bracket side panel right | 1 | 51657267462 | Shop at ECS Tuning | ||||||
| For vehicles with Banner staff, left |
S116A=Yes |
|||||||||
| 04 | Bracket side panel left | 1 | 51657267461 | Shop at ECS Tuning | ||||||
| For vehicles with Banner staff, right |
S117A=Yes |
|||||||||
| 05 | Bracket for side stand, right | 1 | 41007267460 | Shop at ECS Tuning | ||||||
| For vehicles with Banner staff, left |
S116A=Yes |
|||||||||
| 05 | Bracket for side stand, left | 1 | 41007267459 | Shop at ECS Tuning | ||||||
| For vehicles with Banner staff, right |
S117A=Yes |
|||||||||
| 06 | Oval-head screw with washer | ISA M6X21 | 5 | 07147263759 | Shop at ECS Tuning | |||||
| For vehicles with Banner staff, left |
S116A=Yes |
|||||||||
| 06 | Oval-head screw with washer | ISA M6X21 | 5 | 07147263759 | Shop at ECS Tuning | |||||
| For vehicles with Banner staff, right |
S117A=Yes |
|||||||||
| 07 | Hex nut with plate | AM6-8-ZNNIV SI | 2 | 07129904553 | $0.64 | Shop at ECS Tuning | ||||
| For vehicles with Banner staff, left |
S116A=Yes |
|||||||||
| 07 | Hex nut with plate | AM6-8-ZNNIV SI | 2 | 07129904553 | $0.64 | Shop at ECS Tuning | ||||
Notes
- +core = plus core charge (possibility of a return of the old part)
