Safety belt, REMA, front for BMW 6 Series F13 640dX (2015)

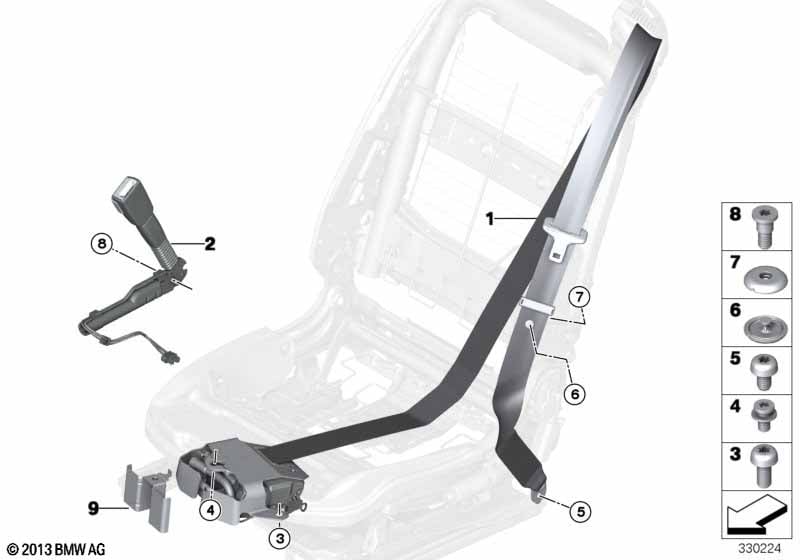

This Safety belt, REMA, front technical drawing provides a detailed breakdown of the assembly for the 6 Series F13 640dX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2015.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Attention Parts Manager. Per NHTSA regulations, please provide the applicable installation instructions to the customer when delivering the safety belt, and include all necessary information, e.g., tightening torques. Please refer to the BMW / MINI / Rolls- Royce Bulletins 000321 / 000221 / A0521, respectively. |
|||||||||
| For vehicles with Leather "Dakota/elfenbein-weiss" or Leather Nappa exp./elfenbein-white/blk. or Leather Nappa expanded/elfenbein-weiss |
LCEX=Yes NAEP=Yes NAEX=Yes |
|||||||||
| 01 | Upper belt strap REMA on front left | ELFENBEINWEISS | 1 | 03/2014 | 72117374499 | Shop at ECS Tuning | ||||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| 01 | Upper belt strap REMA, front right | ELFENBEINWEISS | 1 | 03/2014 | 72117374498 | Shop at ECS Tuning | ||||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| For vehicles with Alcantara/Leather Nappa/anthracite or Leather "Dakota/zimt-braun" or Leather "Dakota"/schwarz or Leather "Merino"/silverstone 2 or Leather Merino/sakhir-orange or Leather "Merino"/schwarz or Leather, expanded/vermilion-rot or Leather "Nappa/zimt-braun" or Leather, Nappa expanded/cognac/black or Leather "Nappa/black" or All leather "Merino/silverstone 2" or Full leather Merino/aragon-brown or All-leather "Merino/sakhir-orange" or Full leather Merino/black or special trim (without colour statement) |
GPAT=Yes LCEZ=Yes LCSW=Yes LKA9=Yes LKDA=Yes LKSW=Yes NABY=Yes NAEZ=Yes NARQ=Yes NASW=Yes X3A9=Yes X3D8=Yes X3DA=Yes X3SW=Yes Z1XX=Yes |
|||||||||
| 01 | Upper belt strap REMA on front left | SCHWARZ | 1 | 03/2014 | 72117374379 | Shop at ECS Tuning | ||||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| 01 | Upper belt strap REMA, front right | SCHWARZ | 1 | 03/2014 | 72117374380 | Shop at ECS Tuning | ||||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| 02 | Lower belt with left belt tensioner | 1 | 07/2013 | 72117261945 | Shop at ECS Tuning | |||||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| 02 | Lower belt with right belt tensioner | 1 | 07/2013 | 72117261946 | Shop at ECS Tuning | |||||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| 03 | Fillister head screw | M10X22 | 4 | 07/2013 | 07149148299 | Shop at ECS Tuning | ||||
| 04 | Torx screw with washer | M10 | 2 | 07/2013 | 07147364551 | Shop at ECS Tuning | ||||
| 05 | Fillister head screw | M10X16 | 2 | 07/2013 | 07147132830 | $1.80 | Shop at ECS Tuning | |||
| 08 | Socket head cap screw with shoulder | 2 | 07/2013 | 72119129608 | Shop at ECS Tuning | |||||
| 09 | Shield plate, seat belt retractor | 2 | 07/2013 | 72117309538 | Shop at ECS Tuning | |||||
