Safety belt rear for BMW 4 Series F83 M4 M4 (2017)

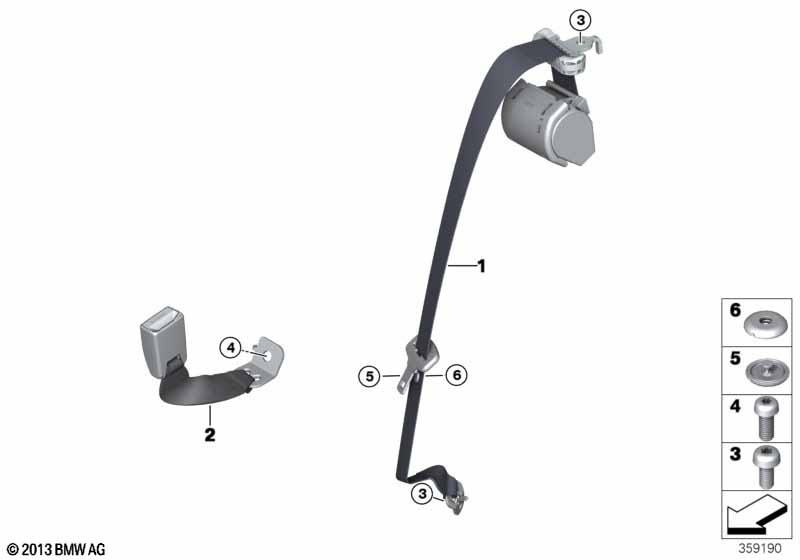

This Safety belt rear technical drawing provides a detailed breakdown of the assembly for the 4 Series F83 M4 M4. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2017.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Attention Parts Manager. Per NHTSA regulations, please provide the applicable installation instructions to the customer when delivering the safety belt, and include all necessary information, e.g., tightening torques. Please refer to the BMW / MINI / Rolls- Royce Bulletins 000321 / 000221 / A0521, respectively. |
|||||||||
| 01 | Upper belt rear left | SCHWARZ | 1 | 72117292705 | Shop at ECS Tuning | |||||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| 01 | Upper belt rear right | SCHWARZ | 1 | 72117293057 | Shop at ECS Tuning | |||||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| For vehicles with oyster/oyster |
DH=Yes |
|||||||||
| 01 | Upper belt rear left | OYSTER 71 | 1 | 72117311125 | Shop at ECS Tuning | |||||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| 01 | Upper belt rear right | OYSTER 71 | 1 | 72117311126 | Shop at ECS Tuning | |||||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| For vehicles with M safety belts |
S4GQA=Yes |
|||||||||
| 01 | Upper belt rear left | M | 1 | 72118076357 | Shop at ECS Tuning | |||||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| 01 | Upper belt rear right | M | 1 | 72118076358 | Shop at ECS Tuning | |||||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| For vehicles with Sensatec or Leather "Dakota" or Veneto-beige |
KC=Yes LC=Yes DF=Yes |
|||||||||
| 01 | Upper belt rear left | VENETOBEIGE | 1 | 72117311123 | Shop at ECS Tuning | |||||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| 01 | Upper belt rear right | VENETOBEIGE | 1 | 72117311124 | Shop at ECS Tuning | |||||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| For vehicles with Extra package, EU-specific |
S230A=No |
|||||||||
| 02 | Lower strap, rear | 1 | 72117322453 | Shop at ECS Tuning | ||||||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| For vehicles with Extra package, EU-specific |
S230A=Yes |
|||||||||
| 02 | Lower strap, rear | 1 | 72117335288 | Shop at ECS Tuning | ||||||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| 03 | Fillister head screw | M10X22 | 4 | 07149148299 | Shop at ECS Tuning | |||||
| 04 | Fillister head screw | M12X27 | 2 | 07149144403 | $1.16 | Shop at ECS Tuning | ||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 4 Series F83 M4 M4 Safety belt rear?
- This technical diagram illustrates the Safety belt rear within the Restraint system and Accessories group for the 4 Series F83 M4 M4 produced during 2017. It provides a detailed exploded view of the components, identifying key parts such as the Upper belt rear left (Part #72117292705).
- Which models use the hardware listed in this Safety belt rear?
- The hardware and components featured in the Safety belt rear are specific to the 4 Series F83 M4 M4 produced during 2017. These technical specifications ensure that parts like the Upper belt rear left (72117292705) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Safety belt rear assembly?
- Each item in the Safety belt rear corresponds to the numbered list below the illustration. For the 4 Series F83 M4 M4, you can identify the Upper belt rear left by locating its position on the schematic, which then links to the official BMW part number 72117292705 for the Restraint system and Accessories section.
