Safety belt front for BMW 2 Series F46 Gran Tourer LCI 220d (2022)

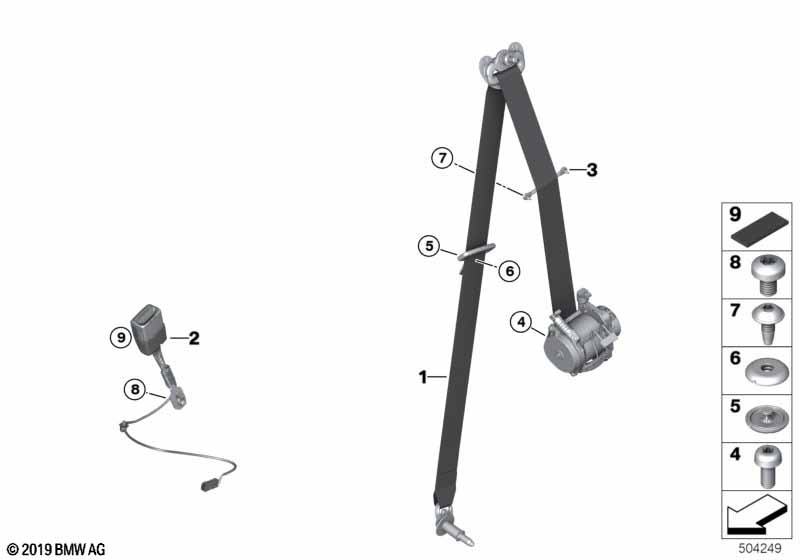

This Safety belt front technical drawing provides a detailed breakdown of the assembly for the 2 Series F46 Gran Tourer LCI 220d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2022.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Attention Parts Manager. Per NHTSA regulations, please provide the applicable installation instructions to the customer when delivering the safety belt, and include all necessary information, e.g., tightening torques. Please refer to the BMW / MINI / Rolls- Royce Bulletins 000321 / 000221 / A0521, respectively. |
|||||||||
| For vehicles with National version China |
L8AAA=Yes |
|||||||||
| 01 | Upper belt front left | 1 | 07/2016 | 72117465519 | Shop at ECS Tuning | |||||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| 01 | Upper belt, front right | 1 | 07/2016 | 72117465520 | Shop at ECS Tuning | |||||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| For vehicles with National version Korea and National version japan |
L802A=Yes L807A=Yes |
|||||||||
| 01 | Upper belt front left | SCHWARZ | 1 | 72117313307 | Shop at ECS Tuning | |||||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| 01 | Upper belt, front right | SCHWARZ | 1 | 72117313308 | Shop at ECS Tuning | |||||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| For vehicles with National version Korea and National version japan |
L802A=Yes L807A=No |
|||||||||
| 01 | Upper belt front left | SCHWARZ | 1 | 72117313307 | Shop at ECS Tuning | |||||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| 01 | Upper belt, front right | SCHWARZ | 1 | 72117313308 | Shop at ECS Tuning | |||||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| For vehicles with National version Korea and National version japan |
L802A=No L807A=Yes |
|||||||||
| 01 | Upper belt front left | SCHWARZ | 1 | 72117313307 | Shop at ECS Tuning | |||||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| 01 | Upper belt, front right | SCHWARZ | 1 | 72117313308 | Shop at ECS Tuning | |||||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| For vehicles with National version Korea and National version japan and National version China |
L802A=No L807A=No L8AAA=No |
|||||||||
| 01 | Upper belt front left | SCHWARZ | 1 | 07/2016 | 72117313303 | Shop at ECS Tuning | ||||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| 01 | Upper belt, front right | SCHWARZ | 1 | 07/2016 | 72117313304 | Shop at ECS Tuning | ||||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| For vehicles with Extra package, EU-specific |
S230A=No |
|||||||||
| 02 | Lower strap 1st seat row | 2 | 72117313297 | Shop at ECS Tuning | ||||||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| For vehicles with National version Korea and Extra package, EU-specific |
L802A=Yes S230A=Yes |
|||||||||
| 02 | Lower strap, front | 2 | 72117313299 | Shop at ECS Tuning | ||||||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| For vehicles with National version Korea and Extra package, EU-specific |
L802A=Yes S230A=No |
|||||||||
| 02 | Lower strap, front | 2 | 72117313299 | Shop at ECS Tuning | ||||||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| For vehicles with National version Korea and Extra package, EU-specific |
L802A=No S230A=Yes |
|||||||||
| 02 | Lower strap, front | 2 | 72117313299 | Shop at ECS Tuning | ||||||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| 03 | Transfer fitting | 2 | 72117453790 | Shop at ECS Tuning | ||||||
| 04 | Fillister head screw | M10X22 | 2 | 07149148299 | Shop at ECS Tuning | |||||
| 07 | Fillister head screw | M5X16 | 4 | 07146972074 | Shop at ECS Tuning | |||||
| 08 | Hex bolt | M10X14X1,5 | 2 | 72119813974 | Shop at ECS Tuning | |||||
| 09 | Felt | 1 | 72115A025F7 | NoS | Shop at ECS Tuning | |||||
Notes
- NoS = No Stock (Part centrally not stocked)
