Safety belt rear for BMW 2 Series F46 Gran Tourer LCI 220d (2022)

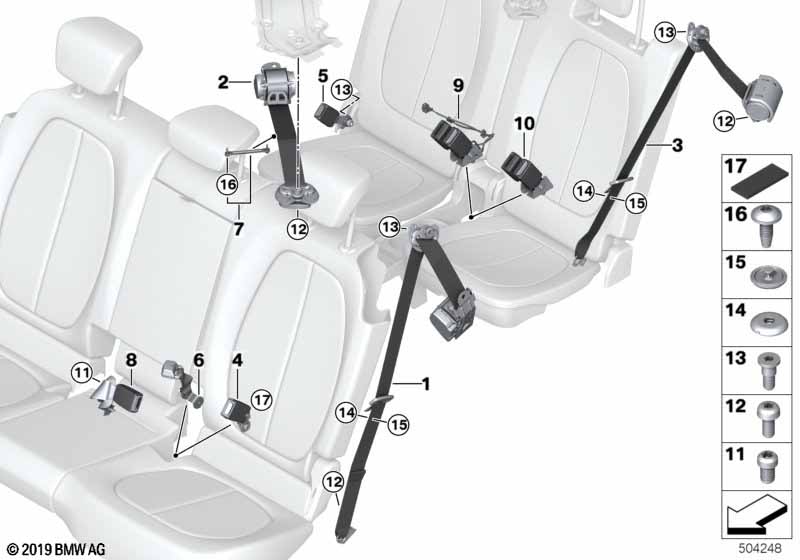

This Safety belt rear technical drawing provides a detailed breakdown of the assembly for the 2 Series F46 Gran Tourer LCI 220d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2022.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Attention Parts Manager. Per NHTSA regulations, please provide the applicable installation instructions to the customer when delivering the safety belt, and include all necessary information, e.g., tightening torques. Please refer to the BMW / MINI / Rolls- Royce Bulletins 000321 / 000221 / A0521, respectively. |
|||||||||
| 01 | Upper belt rear left | SCHWARZ | 1 | 72117332235 | Shop at ECS Tuning | |||||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| 01 | Upper belt rear right | SCHWARZ | 1 | 72117332236 | Shop at ECS Tuning | |||||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| For vehicles with National version japan and National version China |
L807A=Yes L8AAA=Yes |
|||||||||
| 01 | Upper belt rear left | SCHWARZ | 1 | 72117332239 | Shop at ECS Tuning | |||||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| 01 | Upper belt rear right | SCHWARZ | 1 | 72117332240 | Shop at ECS Tuning | |||||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| For vehicles with National version japan and National version China |
L807A=Yes L8AAA=No |
|||||||||
| 01 | Upper belt rear left | SCHWARZ | 1 | 72117332239 | Shop at ECS Tuning | |||||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| 01 | Upper belt rear right | SCHWARZ | 1 | 72117332240 | Shop at ECS Tuning | |||||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| For vehicles with National version japan and National version China |
L807A=No L8AAA=Yes |
|||||||||
| 01 | Upper belt rear left | SCHWARZ | 1 | 72117332239 | Shop at ECS Tuning | |||||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| 01 | Upper belt rear right | SCHWARZ | 1 | 72117332240 | Shop at ECS Tuning | |||||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| 02 | REAR center UPPER BELT | SCHWARZ | 1 | 72117469268 | Shop at ECS Tuning | |||||
| only applies to | ||||||||||
| -- | Belt buckle, center rear | X | 72117469273 | Shop at ECS Tuning | ||||||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| For vehicles with 3rd seat row |
S4UBA=Yes |
|||||||||
| 03 | Upper belt, 3rd seat row, rear left | SCHWARZ | 1 | 72117375643 | Shop at ECS Tuning | |||||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| 03 | Upper belt, 3rd seat row, rear right | SCHWARZ | 1 | 72117375644 | Shop at ECS Tuning | |||||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| For vehicles with Extra package, EU-specific |
S230A=Yes |
|||||||||
| 04 | Belt buckle, left | 1 | 72117388591 | Shop at ECS Tuning | ||||||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| 04 | Belt buckle, right | 1 | 72117388592 | Shop at ECS Tuning | ||||||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| For vehicles with Extra package, EU-specific |
S230A=No |
|||||||||
| 04 | Belt buckle, left | 1 | 72117388589 | Shop at ECS Tuning | ||||||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| 04 | Belt buckle, right | 1 | 72117388590 | Shop at ECS Tuning | ||||||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| For vehicles with 3rd seat row |
S4UBA=Yes |
|||||||||
| 05 | Belt lock, 3rd row seats, left | 1 | 72117161659 | Shop at ECS Tuning | ||||||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| 05 | Belt lock, 3rd row seats right | 1 | 72117161660 | Shop at ECS Tuning | ||||||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| 06 | Belt buckle, center rear | 1 | 72117469273 | Shop at ECS Tuning | ||||||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| 07 | Transfer fitting | 3 | 72117453790 | Shop at ECS Tuning | ||||||
| For vehicles with Extra package, EU-specific |
S230A=Yes |
|||||||||
| 08 | Lower belt rear center | 1 | 72117371653 | Shop at ECS Tuning | ||||||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| For vehicles with Extra package, EU-specific |
S230A=No |
|||||||||
| 08 | Lower belt rear center | 1 | 72117313391 | Shop at ECS Tuning | ||||||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| For vehicles with Extra package, EU-specific and 3rd seat row |
S230A=Yes S4UBA=Yes |
|||||||||
| 09 | Lower strap, rear | 1 | 72117368273 | Shop at ECS Tuning | ||||||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| For vehicles with Extra package, EU-specific and 3rd seat row |
S230A=No S4UBA=Yes |
|||||||||
| 10 | Lower belt for 3rd seat row | 1 | 72117368266 | Shop at ECS Tuning | ||||||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| 11 | Fillister-head screw | M10X15 | 1 | 07147122476 | $0.80 | Shop at ECS Tuning | ||||
| 12 | Fillister head screw | M10X22 | 9 | 07149148299 | Shop at ECS Tuning | |||||
| 13 | Socket head cap screw with shoulder | 2 | 72119129608 | Shop at ECS Tuning | ||||||
| 16 | Fillister head screw | M5X16 | 6 | 07146972074 | Shop at ECS Tuning | |||||
| 17 | Felt | 1 | 72115A025F7 | NoS | Shop at ECS Tuning | |||||
Notes
- NoS = No Stock (Part centrally not stocked)
