Airbag for BMW MINI Clubman F54 LCI One (2022)

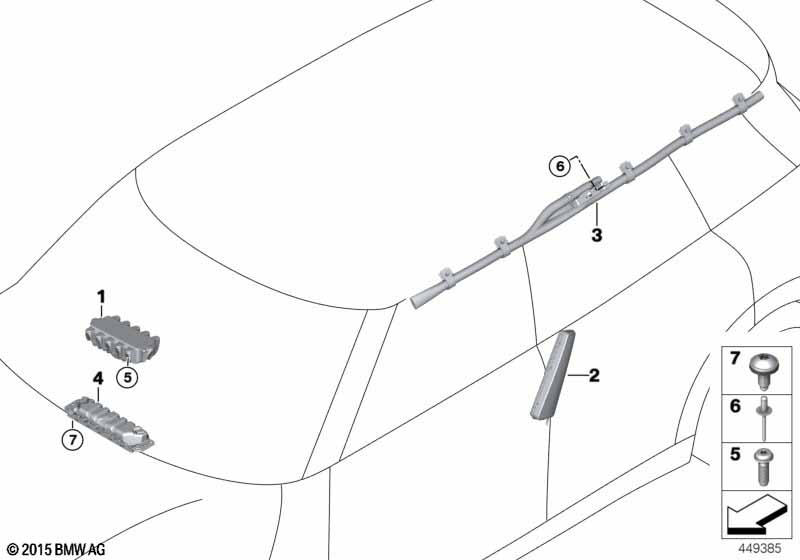

This Airbag technical drawing provides a detailed breakdown of the assembly for the MINI Clubman F54 LCI One. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2022.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Airbag unit front passenger side | 1 | 72126841480 | Shop at ECS Tuning | ||||||
| For vehicles with National version japan |
L807A=Yes |
|||||||||
| 01 | Airbag unit front passenger side | 1 | 72129354712 | Shop at ECS Tuning | ||||||
| 02 | Side airbag, front left seat | 1 | 72127360261 | Shop at ECS Tuning | ||||||
| 02 | Side airbag, front right seat | 1 | 72127360262 | Shop at ECS Tuning | ||||||
| 03 | Head airbag, left | 1 | 72127363721 | Shop at ECS Tuning | ||||||
| 03 | Head airbag, right | 1 | 72127363722 | Shop at ECS Tuning | ||||||
| 05 | Screw | 6X20 | 12 | 07129907489 | Shop at ECS Tuning | |||||
| 06 | Blind rivet | 4 | 07147265827 | Shop at ECS Tuning | ||||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW MINI Clubman F54 LCI One Airbag?
- This technical diagram illustrates the Airbag within the Restraint system and Accessories group for the MINI Clubman F54 LCI One produced during 2022. It provides a detailed exploded view of the components, identifying key parts such as the Airbag unit front passenger side (Part #72126841480).
- Which models use the hardware listed in this Airbag?
- The hardware and components featured in the Airbag are specific to the MINI Clubman F54 LCI One produced during 2022. These technical specifications ensure that parts like the Airbag unit front passenger side (72126841480) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Airbag assembly?
- Each item in the Airbag corresponds to the numbered list below the illustration. For the MINI Clubman F54 LCI One, you can identify the Airbag unit front passenger side by locating its position on the schematic, which then links to the official BMW part number 72126841480 for the Restraint system and Accessories section.
