Airbag for BMW 7 Series G12 LCI 730LdX (2020)

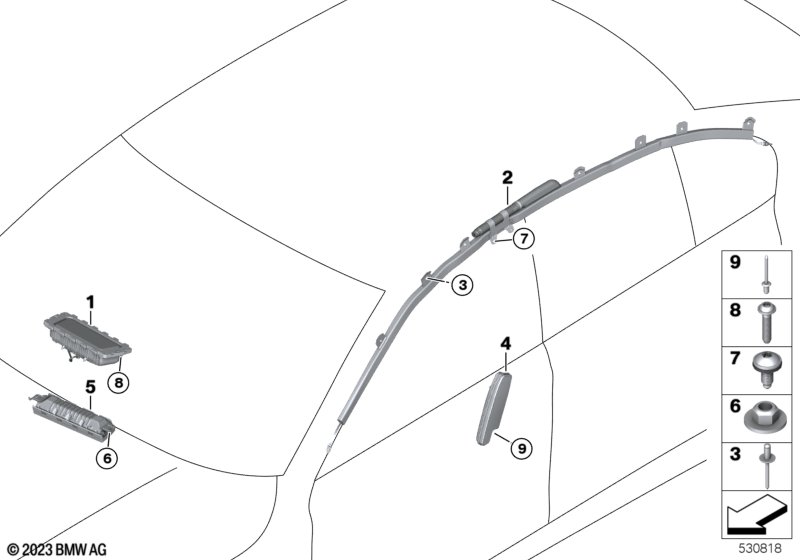

This Airbag technical drawing provides a detailed breakdown of the assembly for the 7 Series G12 LCI 730LdX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2020.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with National version Korea Check installation in vehicle! |
L802A=Yes |
|||||||||
| 01 | Airbag unit front passenger side | 1 | 72129297728 | Shop at ECS Tuning | ||||||
| For vehicles with National version Korea Check installation in vehicle! |
L802A=No |
|||||||||
| 01 | Airbag unit front passenger side | 1 | 72129297726 | Shop at ECS Tuning | ||||||
| 02 | Head airbag, left | 1 | 72127352175 | Shop at ECS Tuning | ||||||
| 02 | Head airbag, right | 1 | 72127352176 | Shop at ECS Tuning | ||||||
| Head airbag | ||||||||||
| 03 | Blind rivet | 6 MM | 6 | 07149289999 | Shop at ECS Tuning | |||||
| 04 | Side airbag, front right seat | 1 | 72127383542 | Shop at ECS Tuning | ||||||
| 04 | Side airbag, front left seat | 1 | 72127383543 | Shop at ECS Tuning | ||||||
| For vehicles with National version Korea and National version japan and National version China and Extra package, EU-specific |
L802A=Yes L807A=No L8AAA=No S230A=Yes |
|||||||||
| 05 | Knee airbag, left | 1 | 72129297721 | Shop at ECS Tuning | ||||||
| For vehicles with National version Korea and National version japan and National version China and Extra package, EU-specific |
L802A=Yes L807A=No L8AAA=No S230A=No |
|||||||||
| 05 | Knee airbag, left | 1 | 72129297721 | Shop at ECS Tuning | ||||||
| For vehicles with National version Korea and National version japan and National version China and Extra package, EU-specific |
L802A=No L807A=No L8AAA=No S230A=Yes |
|||||||||
| 05 | Knee airbag, left | 1 | 72129297721 | Shop at ECS Tuning | ||||||
| 06 | Hex nut | BM6-8-ZNS3 | 2 | 07129904870 | $0.36 | Shop at ECS Tuning | ||||
| 08 | Fillister head screw | 1 | 07149272649 | Shop at ECS Tuning | ||||||
| Side airbag | ||||||||||
| 09 | Blind rivet | AL-A2 | 2 | 07147216152 | Shop at ECS Tuning | |||||
