Flag holder for BMW 5 Series G30 530d (2020)

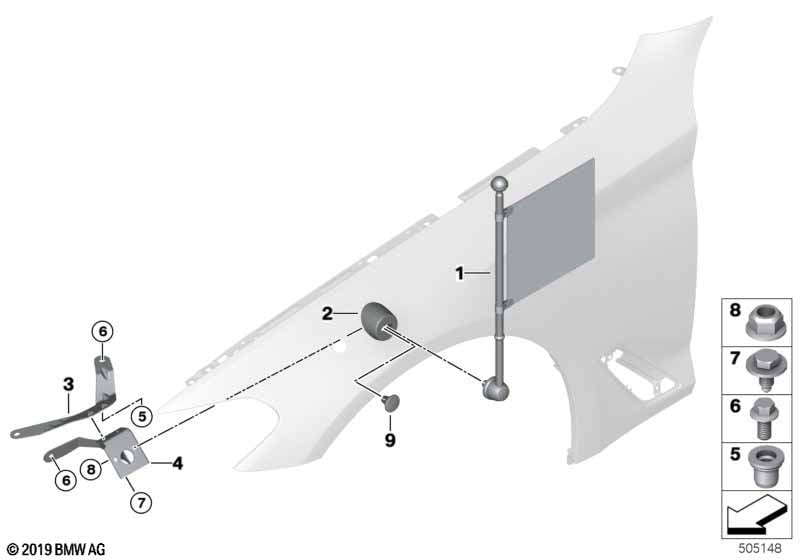

This Flag holder technical drawing provides a detailed breakdown of the assembly for the 5 Series G30 530d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2020.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Attention! The use of the pennant holder in public areas around the vehicle is only permitted with individual approval / attachment approval and approval by the respective regulatory agency. |
|||||||||
| 01 | Flag holder | 2 | 72601878398 | $280.78 | Shop at ECS Tuning | |||||
| 02 | Base plate left | 1 | 72608067127 | Shop at ECS Tuning | ||||||
| 02 | Base plate right | 1 | 72608067128 | Shop at ECS Tuning | ||||||
| 03 | Bracket upper left | 1 | 72608067131 | Shop at ECS Tuning | ||||||
| 03 | Bracket upper right | 1 | 72608067132 | Shop at ECS Tuning | ||||||
| 04 | Bracket lower left | 1 | 72608067129 | Shop at ECS Tuning | ||||||
| 04 | Bracket lower right | 1 | 72608067130 | Shop at ECS Tuning | ||||||
| 05 | Blind rivet nut, flat headed | M8 | 2 | 13327809796 | Shop at ECS Tuning | |||||
| 06 | Hexagon screw with flange | M8X12-8.8-ZNS3 | 2 | 07119905812 | Shop at ECS Tuning | |||||
| 07 | Hex bolt with washer | M6X12 | 6 | 07147147513 | $0.38 | Shop at ECS Tuning | ||||
| 08 | Hex nut with plate | M6-8-ZNNIV SI | 4 | 07119905949 | $0.24 | Shop at ECS Tuning | ||||
| For vehicles with Banner staff, right |
S117A=Yes |
|||||||||
| 09 | Blind plug | 1 | 72601860157 | $6.60 | Shop at ECS Tuning | |||||
| For vehicles with Banner staff, left |
S116A=Yes |
|||||||||
| 09 | Blind plug | 1 | 72601860157 | $6.60 | Shop at ECS Tuning | |||||
