Airbag for BMW 3 Series G21 Touring 330e (2022)

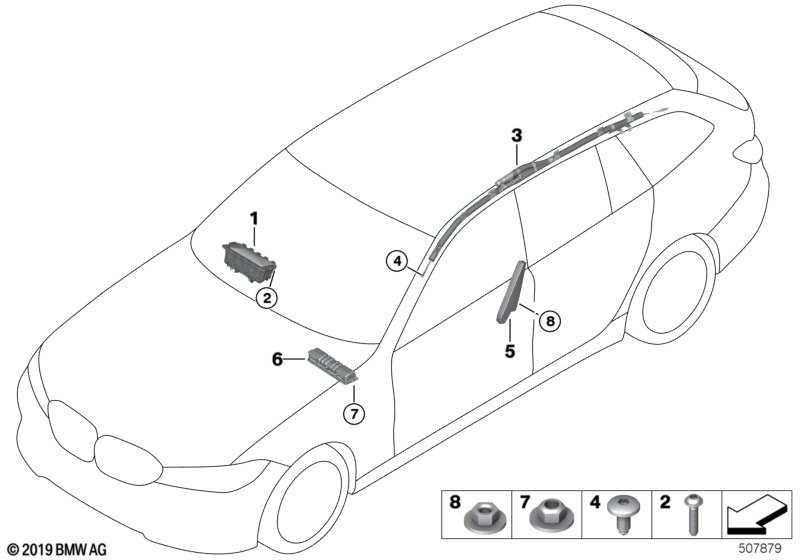

This Airbag technical drawing provides a detailed breakdown of the assembly for the 3 Series G21 Touring 330e. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2022.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Airbag unit front passenger side | 1 | 72126804063 | Shop at ECS Tuning | ||||||
| For vehicles with National version Korea |
L802A=Yes |
|||||||||
| 01 | Airbag unit front passenger side | 1 | 72126804070 | Shop at ECS Tuning | ||||||
| 02 | Fillister head screw | 1 | 07149272649 | Shop at ECS Tuning | ||||||
| 03 | Head airbag, left | ECE | 1 | 72127419425 | Shop at ECS Tuning | |||||
| 03 | Head airbag, right | ECE | 1 | 72127419426 | Shop at ECS Tuning | |||||
| 04 | Fillister head screw | M6X12 | 12 | 51439496586 | Shop at ECS Tuning | |||||
| 05 | Side airbag, front left seat | 1 | 72127441489 | Shop at ECS Tuning | ||||||
| 05 | Side airbag, front right seat | 1 | 72127441490 | Shop at ECS Tuning | ||||||
| 06 | Knee airbag, left | ECE | 1 | 72126804045 | Shop at ECS Tuning | |||||
| 06 | Knee airbag, right | ECE | 1 | 72126804046 | Shop at ECS Tuning | |||||
| For vehicles with National version Korea |
L802A=Yes |
|||||||||
| 06 | Knee airbag, left | US | 1 | 72126804047 | Shop at ECS Tuning | |||||
| 06 | Knee airbag, right | US | 1 | 72126804048 | Shop at ECS Tuning | |||||
| 07 | Hex nut | BM6-8-ZNS3 | 4 | 07129904870 | $0.36 | Shop at ECS Tuning | ||||
| 08 | Hex nut | M6-8-ZNS3 | 2 | 07119902751 | $0.56 | Shop at ECS Tuning | ||||
