Safety belt, REMA, front for BMW 3 Series G21 Touring 330e (2022)

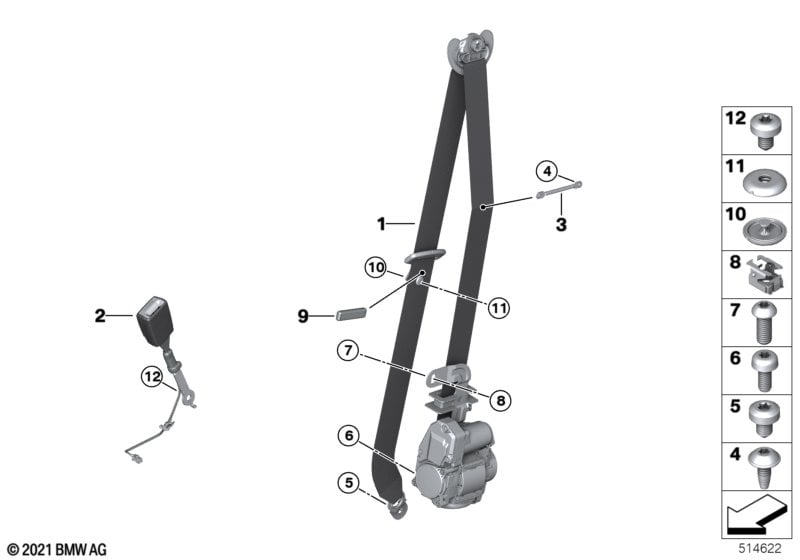

This Safety belt, REMA, front technical drawing provides a detailed breakdown of the assembly for the 3 Series G21 Touring 330e. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2022.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Attention Parts Manager. Per NHTSA regulations, please provide the applicable installation instructions to the customer when delivering the safety belt, and include all necessary information, e.g., tightening torques. Please refer to the BMW / MINI / Rolls- Royce Bulletins 000321 / 000221 / A0521, respectively. For vehicles with Active Protection |
S5ALA=Yes |
||||||||
| For vehicles with National version Korea and M safety belts |
L802A=Yes S4GQA=No |
|||||||||
| 01 | Upper belt strap REMA, front right | SCHWARZ | 1 | 72119460974 | Shop at ECS Tuning | |||||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| For vehicles with National version Korea and M safety belts |
L802A=Yes S4GQA=Yes |
|||||||||
| 01 | Upper belt strap REMA on front left | M | 1 | 72118747229 | Shop at ECS Tuning | |||||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| 01 | Upper belt strap REMA, front right | M | 1 | 72118747230 | Shop at ECS Tuning | |||||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| For vehicles with National version Korea and M safety belts |
L802A=No S4GQA=Yes |
|||||||||
| 01 | Upper belt strap REMA on front left | M | 1 | 72118747227 | Shop at ECS Tuning | |||||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| 01 | Upper belt strap REMA, front right | M | 1 | 72118747228 | Shop at ECS Tuning | |||||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| For vehicles with National version Korea and M safety belts |
L802A=No S4GQA=No |
|||||||||
| 01 | Upper belt strap REMA on front left | SCHWARZ | 1 | 72119460963 | Shop at ECS Tuning | |||||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| 01 | Upper belt strap REMA, front right | SCHWARZ | 1 | 72119460964 | Shop at ECS Tuning | |||||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| For vehicles with National version Korea and National version China and M safety belts |
L802A=Yes L8AAA=Yes S4GQA=Yes |
|||||||||
| 01 | Upper belt strap REMA on front left | M | 1 | 72118747229 | Shop at ECS Tuning | |||||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| 01 | Upper belt strap REMA, front right | M | 1 | 72118747230 | Shop at ECS Tuning | |||||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| For vehicles with National version Korea and National version China and M safety belts |
L802A=Yes L8AAA=No S4GQA=Yes |
|||||||||
| 01 | Upper belt strap REMA on front left | M | 1 | 72118747229 | Shop at ECS Tuning | |||||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| 01 | Upper belt strap REMA, front right | M | 1 | 72118747230 | Shop at ECS Tuning | |||||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| For vehicles with National version Korea and National version China and M safety belts |
L802A=No L8AAA=Yes S4GQA=Yes |
|||||||||
| 01 | Upper belt strap REMA on front left | M | 1 | 72118747229 | Shop at ECS Tuning | |||||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| 01 | Upper belt strap REMA, front right | M | 1 | 72118747230 | Shop at ECS Tuning | |||||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| For vehicles with National version Korea and National version China and M safety belts |
L802A=No L8AAA=No S4GQA=Yes |
|||||||||
| 01 | Upper belt strap REMA on front left | M | 1 | 72118747227 | Shop at ECS Tuning | |||||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| 01 | Upper belt strap REMA, front right | M | 1 | 72118747228 | Shop at ECS Tuning | |||||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| For vehicles with National version Korea and National version China and M safety belts |
L802A=Yes L8AAA=Yes S4GQA=No |
|||||||||
| 01 | Upper belt strap REMA on front left | SCHWARZ | 1 | 72119460973 | Shop at ECS Tuning | |||||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| 01 | Upper belt strap REMA, front right | SCHWARZ | 1 | 72119460974 | Shop at ECS Tuning | |||||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| For vehicles with National version Korea and National version China and M safety belts |
L802A=Yes L8AAA=No S4GQA=No |
|||||||||
| 01 | Upper belt strap REMA on front left | SCHWARZ | 1 | 72119460973 | Shop at ECS Tuning | |||||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| 01 | Upper belt strap REMA, front right | SCHWARZ | 1 | 72119460974 | Shop at ECS Tuning | |||||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| For vehicles with National version Korea and National version China and M safety belts |
L802A=No L8AAA=Yes S4GQA=No |
|||||||||
| 01 | Upper belt strap REMA on front left | SCHWARZ | 1 | 72119460973 | Shop at ECS Tuning | |||||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| 01 | Upper belt strap REMA, front right | SCHWARZ | 1 | 72119460974 | Shop at ECS Tuning | |||||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| For vehicles with National version Korea and National version China and M safety belts |
L802A=No L8AAA=No S4GQA=No |
|||||||||
| 01 | Upper belt strap REMA on front left | SCHWARZ | 1 | 72119460963 | Shop at ECS Tuning | |||||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| 01 | Upper belt strap REMA, front right | SCHWARZ | 1 | 72119460964 | Shop at ECS Tuning | |||||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| For vehicles with National version Korea and M safety belts and Sensatec/canberra-beige or Sensatec/canberra-beige or Sensatec perforated/Canberra beige, ext. or Sensatec perforated/Canberra beige, ext. or Leath.Vernasca/Canberra beige de.stitch. or Leath.Vernasca/Canberra beige de.stitch. |
L802A=Yes S4GQA=No KCCY=Yes KCFY=Yes KHFR=Yes KHFS=Yes MAFO=Yes MAFX=Yes |
|||||||||
| 01 | Upper belt strap REMA on front left | CANBERRABEIGE | 1 | 72119460971 | Shop at ECS Tuning | |||||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| 01 | Upper belt strap REMA, front right | CANBERRABEIGE | 1 | 72119460972 | Shop at ECS Tuning | |||||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| For vehicles with National version Korea and M safety belts and Sensatec/canberra-beige or Sensatec/canberra-beige or Sensatec perforated/Canberra beige, ext. or Sensatec perforated/Canberra beige, ext. or Leath.Vernasca/Canberra beige de.stitch. or Leath.Vernasca/Canberra beige de.stitch. |
L802A=No S4GQA=No KCCY=Yes KCFY=Yes KHFR=Yes KHFS=Yes MAFO=Yes MAFX=Yes |
|||||||||
| 01 | Upper belt strap REMA on front left | CANBERRABEIGE | 1 | 72119460961 | Shop at ECS Tuning | |||||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| 01 | Upper belt strap REMA, front right | CANBERRABEIGE | 1 | 72119460962 | Shop at ECS Tuning | |||||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| 02 | Lower strap, front | SCHWARZ | 2 | 72117414301 | Shop at ECS Tuning | |||||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| 03 | Transfer fitting | 2 | 72117453790 | Shop at ECS Tuning | ||||||
| 04 | Sheet metal screw | ISA M5X12 | 4 | 07149158177 | $0.25 | Shop at ECS Tuning | ||||
| 05 | Countersunk screw | M10X16-8.8 SW | 2 | 07119908419 | Shop at ECS Tuning | |||||
| 06 | Fillister head screw | M10X22 | 2 | 07149148299 | Shop at ECS Tuning | |||||
| 07 | Fillister head screw | M8X20 | 2 | 41007243852 | Shop at ECS Tuning | |||||
| 08 | Tilting captive nut | 2 | 07147398148 | Shop at ECS Tuning | ||||||
| 09 | Clamping | 2 | 72118469012 | Shop at ECS Tuning | ||||||
| 12 | Screw | M10X16 | 2 | 72119909471 | Shop at ECS Tuning | |||||
