Safety belt, REMA, front for BMW 3 Series F34 GT 320d (2015)

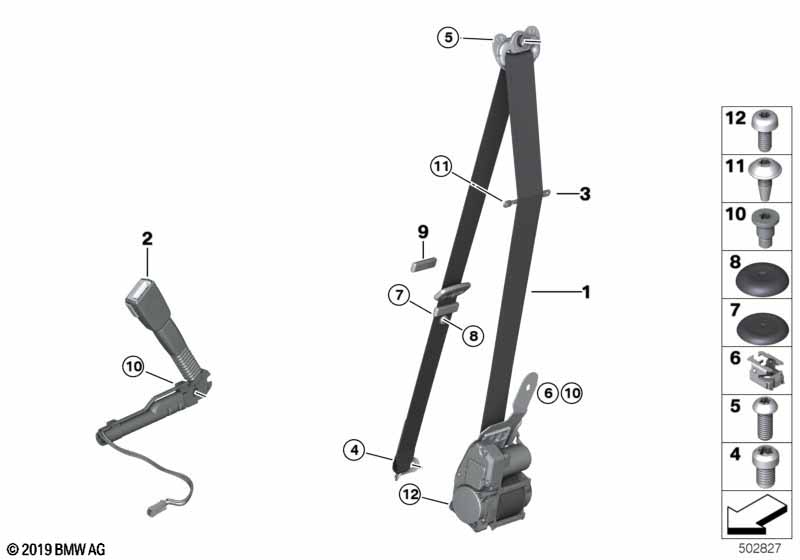

This Safety belt, REMA, front technical drawing provides a detailed breakdown of the assembly for the 3 Series F34 GT 320d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2015.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Attention Parts Manager. Per NHTSA regulations, please provide the applicable installation instructions to the customer when delivering the safety belt, and include all necessary information, e.g., tightening torques. Please refer to the BMW / MINI / Rolls- Royce Bulletins 000321 / 000221 / A0521, respectively. For vehicles with Active Protection |
S5ALA=Yes |
||||||||
| 01 | Upper belt, front right | SCHWARZ | 1 | 72117383318 | Shop at ECS Tuning | |||||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| 01 | Upper belt strap REMA on front left | SCHWARZ | 1 | 72117383321 | Shop at ECS Tuning | |||||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| For vehicles with oyster/oyster or oyster/Akzent oyster dark or oyster/Akzent oyster dark |
DH=Yes L9=Yes OM=Yes |
|||||||||
| 01 | Upper belt strap REMA, front right | OYSTER 71 | 1 | 72117383322 | Shop at ECS Tuning | |||||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| 01 | Upper belt strap REMA on front left | OYSTER 71 | 1 | 72117383325 | Shop at ECS Tuning | |||||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| For vehicles with Veneto-beige or Sensatec/veneto-beige or Leather 'Dakota' venetobeige/oyster acc. or Leath.Dakota/veneto-beige/accent oyster or Leather 'Dakota' venetobeige black |
DF=Yes KCV1=Yes LCFJ=Yes LCFL=Yes LCV1=Yes |
|||||||||
| 01 | Upper belt strap REMA, front right | VENETOBEIGE | 1 | 72117383320 | Shop at ECS Tuning | |||||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| 01 | Upper belt strap REMA on front left | VENETOBEIGE | 1 | 72117383323 | Shop at ECS Tuning | |||||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| 02 | Belt tensioner, left | 1 | 72117259387 | Shop at ECS Tuning | ||||||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| 02 | Belt tensioner, right | 1 | 72117259388 | Shop at ECS Tuning | ||||||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| 03 | Transfer fitting | 2 | 04/2017 | 72117270021 | ENDED | Shop at ECS Tuning | ||||
| 03 | Transfer fitting | 2 | 72117453790 | Shop at ECS Tuning | ||||||
| 04 | Fillister-head screw | M10X15 | 2 | 07147122476 | $0.80 | Shop at ECS Tuning | ||||
| 05 | Socket head cap screw with shoulder | 2 | 72116985527 | $6.70 | Shop at ECS Tuning | |||||
| 06 | Tilting captive nut | 2 | 07147398148 | Shop at ECS Tuning | ||||||
| 09 | Clamping | 2 | 11/2018 | 72111862636 | $0.83 | ENDED | Shop at ECS Tuning | |||
| 09 | Clamping | 2 | 72118469012 | Shop at ECS Tuning | ||||||
| 10 | Fillister head screw | M8X20 | 2 | 41007243852 | Shop at ECS Tuning | |||||
| 11 | Fillister head screw | M5X16 | 2 | 07146972074 | Shop at ECS Tuning | |||||
| 12 | Fillister head screw | M10X22 | 2 | 07149148299 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series F34 GT 320d Safety belt, REMA, front?
- This technical diagram illustrates the Safety belt, REMA, front within the Restraint system and Accessories group for the 3 Series F34 GT 320d produced during 2015. It provides a detailed exploded view of the components, identifying key parts such as the Upper belt, front right (Part #72117383318).
- Which models use the hardware listed in this Safety belt, REMA, front?
- The hardware and components featured in the Safety belt, REMA, front are specific to the 3 Series F34 GT 320d produced during 2015. These technical specifications ensure that parts like the Upper belt, front right (72117383318) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Safety belt, REMA, front assembly?
- Each item in the Safety belt, REMA, front corresponds to the numbered list below the illustration. For the 3 Series F34 GT 320d, you can identify the Upper belt, front right by locating its position on the schematic, which then links to the official BMW part number 72117383318 for the Restraint system and Accessories section.
