Safety belt front for BMW 1 Series F40 128ti (2024)

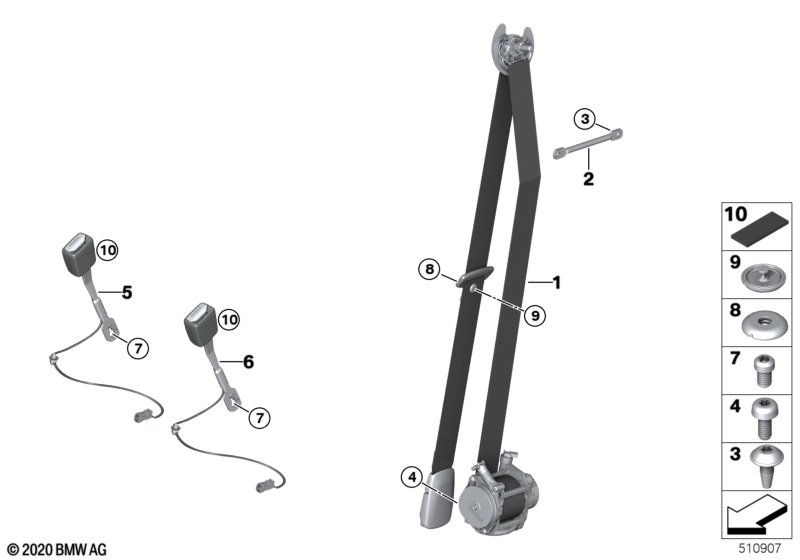

This Safety belt front technical drawing provides a detailed breakdown of the assembly for the 1 Series F40 128ti. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.

Safety belt front
No. Description Supp. Qty  From   Up To  Part Number Price Notes
  i Attention Parts Manager. Per NHTSA
regulations, please provide the
applicable installation instructions to
the customer when delivering the safety
belt, and include all necessary
information, e.g., tightening torques.
Please refer to the BMW / MINI / Rolls-
Royce Bulletins 000321 / 000221 /
A0521, respectively.
01 Upper belt front left M 1 72118076555 Shop at ECS Tuning
When this safety component is being
sold,
for legal reasons the
product information (see: Parts
information -> Su
pplement) must be printed out and given
to the cu
stomer.
01 Upper belt, front right M 1 72118076556 Shop at ECS Tuning
When this safety component is being
sold,
for legal reasons the
product information (see: Parts
information -> Su
pplement) must be printed out and given
to the cu
stomer.
02 Transfer fitting 2 72117453790 Shop at ECS Tuning
03 Torx screw, self-threading M6X13-ZNNIVSI 4 31146786689 Shop at ECS Tuning
04 Fillister head screw M10X22 2 07149148299 Shop at ECS Tuning
Driver's side
05 Lower strap, front 1 72117456273 Shop at ECS Tuning
When this safety component is being
sold,
for legal reasons the
product information (see: Parts
information -> Su
pplement) must be printed out and given
to the cu
stomer.
For vehicles with
National version japan
and
Extra package, EU-specific
and
Comfort access
and
Latin America-specific additional scopes
and
Thiefproofing device
Passenger's side
L807A=Yes

S230A=Yes

S322A=Yes

S8R1A=Yes

S8TGA=Yes
06 Lower strap, front 1 72117456273 Shop at ECS Tuning
When this safety component is being
sold,
for legal reasons the
product information (see: Parts
information -> Su
pplement) must be printed out and given
to the cu
stomer.
For vehicles with
National version japan
and
Extra package, EU-specific
and
Comfort access
and
Latin America-specific additional scopes
and
Thiefproofing device
Passenger's side
L807A=No

S230A=No

S322A=Yes

S8R1A=No

S8TGA=No
06 Lower strap, front 1 72117456274 Shop at ECS Tuning
When this safety component is being
sold,
for legal reasons the
product information (see: Parts
information -> Su
pplement) must be printed out and given
to the cu
stomer.
07 Fillister-head screw M10X15 2 07147122476 $0.80 Shop at ECS Tuning
10 Felt 1 72115A025F7 NoS Shop at ECS Tuning
Notes
  • NoS = No Stock (Part centrally not stocked)
