Safety belt front for BMW 4 Series G82 M4 Coupé M4 (2024)

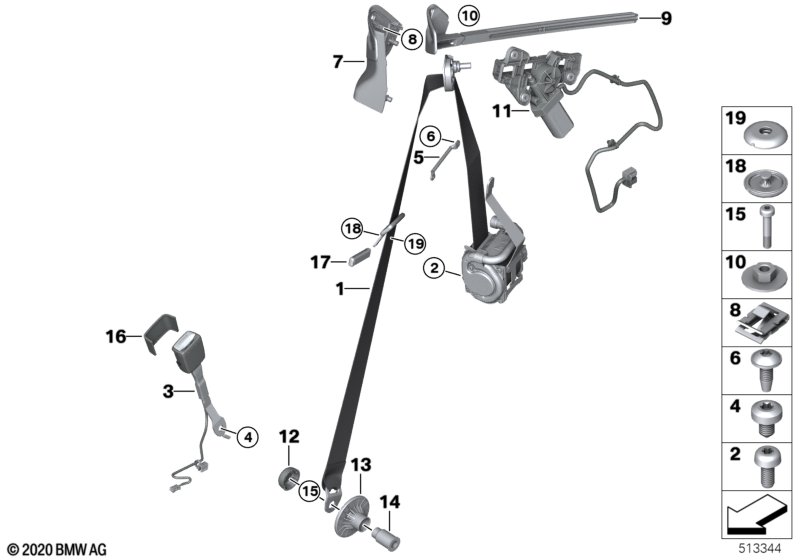

This Safety belt front technical drawing provides a detailed breakdown of the assembly for the 4 Series G82 M4 Coupé M4. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.

Safety belt front
No. Description Supp. Qty  From   Up To  Part Number Price Notes
  i Attention Parts Manager. Per NHTSA
regulations, please provide the
applicable installation instructions to
the customer when delivering the safety
belt, and include all necessary
information, e.g., tightening torques.
Please refer to the BMW / MINI / Rolls-
Royce Bulletins 000321 / 000221 /
A0521, respectively.
For vehicles with
Active Protection









S5ALA=No
For vehicles with
National version Korea
and
National version China
and
M safety belts
L802A=Yes

L8AAA=Yes

S4GQA=Yes
01 Upper belt front left M 1 72118097741 Shop at ECS Tuning
When this safety component is being
sold,
for legal reasons the
product information (see: Parts
information -> Su
pplement) must be printed out and given
to the cu
stomer.
01 Upper belt, front right M 1 72118097742 Shop at ECS Tuning
When this safety component is being
sold,
for legal reasons the
product information (see: Parts
information -> Su
pplement) must be printed out and given
to the cu
stomer.
For vehicles with
National version Korea
and
National version China
and
M safety belts
L802A=Yes

L8AAA=No

S4GQA=Yes
01 Upper belt front left M 1 72118097741 Shop at ECS Tuning
When this safety component is being
sold,
for legal reasons the
product information (see: Parts
information -> Su
pplement) must be printed out and given
to the cu
stomer.
01 Upper belt, front right M 1 72118097742 Shop at ECS Tuning
When this safety component is being
sold,
for legal reasons the
product information (see: Parts
information -> Su
pplement) must be printed out and given
to the cu
stomer.
For vehicles with
National version Korea
and
National version China
and
M safety belts
L802A=No

L8AAA=Yes

S4GQA=Yes
01 Upper belt front left M 1 72118097741 Shop at ECS Tuning
When this safety component is being
sold,
for legal reasons the
product information (see: Parts
information -> Su
pplement) must be printed out and given
to the cu
stomer.
01 Upper belt, front right M 1 72118097742 Shop at ECS Tuning
When this safety component is being
sold,
for legal reasons the
product information (see: Parts
information -> Su
pplement) must be printed out and given
to the cu
stomer.
For vehicles with
National version Korea
and
National version China
and
M safety belts
L802A=No

L8AAA=No

S4GQA=Yes
01 Upper belt front left M 1 72118097739 Shop at ECS Tuning
When this safety component is being
sold,
for legal reasons the
product information (see: Parts
information -> Su
pplement) must be printed out and given
to the cu
stomer.
01 Upper belt, front right M 1 72118097740 Shop at ECS Tuning
When this safety component is being
sold,
for legal reasons the
product information (see: Parts
information -> Su
pplement) must be printed out and given
to the cu
stomer.
For vehicles with
National version Korea
and
National version China
and
M safety belts
L802A=Yes

L8AAA=Yes

S4GQA=No
01 Upper belt front left SCHWARZ 1 72119476267 Shop at ECS Tuning
When this safety component is being
sold,
for legal reasons the
product information (see: Parts
information -> Su
pplement) must be printed out and given
to the cu
stomer.
01 Upper belt, front right SCHWARZ 1 72119476268 Shop at ECS Tuning
When this safety component is being
sold,
for legal reasons the
product information (see: Parts
information -> Su
pplement) must be printed out and given
to the cu
stomer.
For vehicles with
National version Korea
and
National version China
and
M safety belts
L802A=Yes

L8AAA=No

S4GQA=No
01 Upper belt front left SCHWARZ 1 72119476267 Shop at ECS Tuning
When this safety component is being
sold,
for legal reasons the
product information (see: Parts
information -> Su
pplement) must be printed out and given
to the cu
stomer.
01 Upper belt, front right SCHWARZ 1 72119476268 Shop at ECS Tuning
When this safety component is being
sold,
for legal reasons the
product information (see: Parts
information -> Su
pplement) must be printed out and given
to the cu
stomer.
For vehicles with
National version Korea
and
National version China
and
M safety belts
L802A=No

L8AAA=Yes

S4GQA=No
01 Upper belt front left SCHWARZ 1 72119476267 Shop at ECS Tuning
When this safety component is being
sold,
for legal reasons the
product information (see: Parts
information -> Su
pplement) must be printed out and given
to the cu
stomer.
01 Upper belt, front right SCHWARZ 1 72119476268 Shop at ECS Tuning
When this safety component is being
sold,
for legal reasons the
product information (see: Parts
information -> Su
pplement) must be printed out and given
to the cu
stomer.
For vehicles with
National version Korea
and
National version China
and
M safety belts
L802A=No

L8AAA=No

S4GQA=No
01 Upper belt front left SCHWARZ 1 72119476263 Shop at ECS Tuning
When this safety component is being
sold,
for legal reasons the
product information (see: Parts
information -> Su
pplement) must be printed out and given
to the cu
stomer.
01 Upper belt, front right SCHWARZ 1 72119476264 Shop at ECS Tuning
When this safety component is being
sold,
for legal reasons the
product information (see: Parts
information -> Su
pplement) must be printed out and given
to the cu
stomer.
02 Fillister head screw M10X22 2 07149148299 Shop at ECS Tuning
03 Lower strap, front 2 72117938033 Shop at ECS Tuning
When this safety component is being
sold,
for legal reasons the
product information (see: Parts
information -> Su
pplement) must be printed out and given
to the cu
stomer.
04 Screw M10X16 2 72119909471 Shop at ECS Tuning
05 Transfer fitting 2 72119461762 Shop at ECS Tuning
06 Fillister head screw M5X16 4 07146972074 Shop at ECS Tuning
08 Clamp 4 07146995183 NoS Shop at ECS Tuning
11 Drive unit, left 1 72115A05245 Shop at ECS Tuning
11 Drive unit, right 1 72115A05246 Shop at ECS Tuning
12 Cover, belt reel 2 72117950593 Shop at ECS Tuning
13 Cover 2 72115A185A9 Shop at ECS Tuning
14 Bush 2 07149490380 Shop at ECS Tuning
15 Collar screw M10X55 2 07149483073 Shop at ECS Tuning
16 Set felt strip self-adhesive 2 51452353024 Shop at ECS Tuning
17 Clamping 2 72118469012 Shop at ECS Tuning
Notes
  • NoS = No Stock (Part centrally not stocked)
