Safety belt front for BMW 4 Series G23 Convertible 420d (2024)

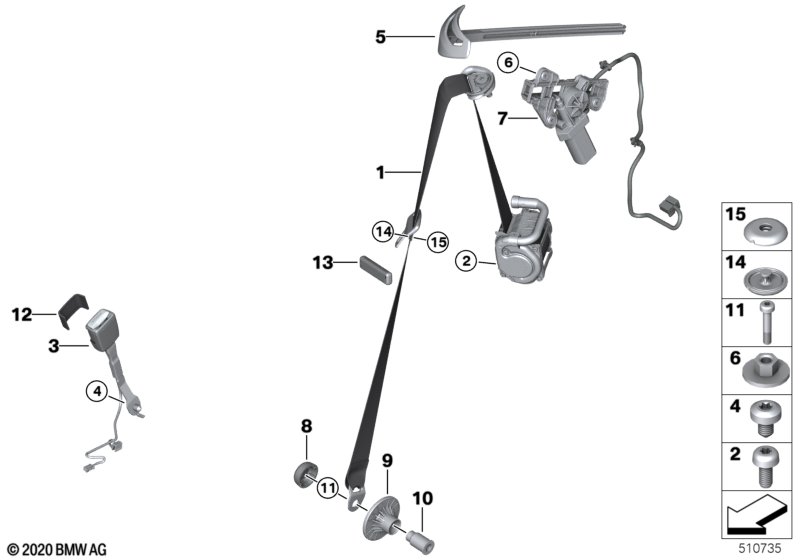

This Safety belt front technical drawing provides a detailed breakdown of the assembly for the 4 Series G23 Convertible 420d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Attention Parts Manager. Per NHTSA regulations, please provide the applicable installation instructions to the customer when delivering the safety belt, and include all necessary information, e.g., tightening torques. Please refer to the BMW / MINI / Rolls- Royce Bulletins 000321 / 000221 / A0521, respectively. For vehicles with Active Protection |
S5ALA=No |
||||||||
| For vehicles with National version Korea and M safety belts |
L802A=Yes S4GQA=Yes |
|||||||||
| 01 | Upper belt front left | M | 1 | 72118097807 | Shop at ECS Tuning | |||||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| 01 | Upper belt, front right | M | 1 | 72118097808 | Shop at ECS Tuning | |||||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| For vehicles with National version China and M safety belts |
L8AAA=Yes S4GQA=No |
|||||||||
| 01 | Upper belt front left | SCHWARZ | 1 | 72119870057 | Shop at ECS Tuning | |||||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| 01 | Upper belt, front right | SCHWARZ | 1 | 72119870058 | Shop at ECS Tuning | |||||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| For vehicles with National version Korea and M safety belts |
L802A=Yes S4GQA=No |
|||||||||
| 01 | Upper belt front left | SCHWARZ | 1 | 72119870057 | Shop at ECS Tuning | |||||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| 01 | Upper belt, front right | SCHWARZ | 1 | 72119870058 | Shop at ECS Tuning | |||||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| For vehicles with National version Korea and National version China and M safety belts |
L802A=No L8AAA=No S4GQA=No |
|||||||||
| 01 | Upper belt front left | SCHWARZ | 1 | 72119870053 | Shop at ECS Tuning | |||||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| 01 | Upper belt, front right | SCHWARZ | 1 | 72119870054 | Shop at ECS Tuning | |||||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| For vehicles with National version Korea and National version China and M safety belts |
L802A=No L8AAA=No S4GQA=Yes |
|||||||||
| 01 | Upper belt front left | M | 1 | 72118097805 | Shop at ECS Tuning | |||||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| 01 | Upper belt, front right | M | 1 | 72118097806 | Shop at ECS Tuning | |||||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| For vehicles with National version Korea and M safety belts and Sensatec perforated/Canberra beige, ext. or Sensatec perforated/Canberra beige, ext. |
L802A=Yes S4GQA=No KHFR=Yes KHFS=Yes |
|||||||||
| 01 | Upper belt front left | CANBERRABEIGE | 1 | 72119870055 | Shop at ECS Tuning | |||||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| 01 | Upper belt, front right | CANBERRABEIGE | 1 | 72119870056 | Shop at ECS Tuning | |||||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| For vehicles with National version China and M safety belts and Sensatec perforated/Canberra beige, ext. or Sensatec perforated/Canberra beige, ext. |
L8AAA=Yes S4GQA=No KHFR=Yes KHFS=Yes |
|||||||||
| 01 | Upper belt front left | CANBERRABEIGE | 1 | 72119870055 | Shop at ECS Tuning | |||||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| 01 | Upper belt, front right | CANBERRABEIGE | 1 | 72119870056 | Shop at ECS Tuning | |||||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| For vehicles with National version Korea and National version China and M safety belts and Sensatec perforated/Canberra beige, ext. or Sensatec perforated/Canberra beige, ext. |
L802A=No L8AAA=No S4GQA=No KHFR=Yes KHFS=Yes |
|||||||||
| 01 | Upper belt front left | CANBERRABEIGE | 1 | 72119870051 | Shop at ECS Tuning | |||||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| 01 | Upper belt, front right | CANBERRABEIGE | 1 | 72119870052 | Shop at ECS Tuning | |||||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| 02 | Fillister head screw | M10X22 | 2 | 07149148299 | Shop at ECS Tuning | |||||
| 03 | Lower strap, front | 2 | 72117938033 | Shop at ECS Tuning | ||||||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| 04 | Screw | M10X16 | 2 | 72119909471 | Shop at ECS Tuning | |||||
| 05 | Belt-handover, left | 1 | 72117474849 | Shop at ECS Tuning | ||||||
| 05 | Belt-handover, right | 1 | 72117474850 | Shop at ECS Tuning | ||||||
| 06 | Hex nut with plate | M5 | 4 | 51169157035 | Shop at ECS Tuning | |||||
| 07 | Drive unit, left | 1 | 72115A05245 | Shop at ECS Tuning | ||||||
| 07 | Drive unit, right | 1 | 72115A05246 | Shop at ECS Tuning | ||||||
| 08 | Cover, belt reel | 2 | 72117950593 | Shop at ECS Tuning | ||||||
| 09 | Cover | 2 | 72115A185A9 | Shop at ECS Tuning | ||||||
| 10 | Bush | 2 | 07149490380 | Shop at ECS Tuning | ||||||
| 11 | Collar screw | M10X55 | 2 | 07149483073 | Shop at ECS Tuning | |||||
| 12 | Set felt strip self-adhesive | 2 | 51452353024 | Shop at ECS Tuning | ||||||
