Safety belt rear for BMW 4 Series G23 Convertible M440i (2024)

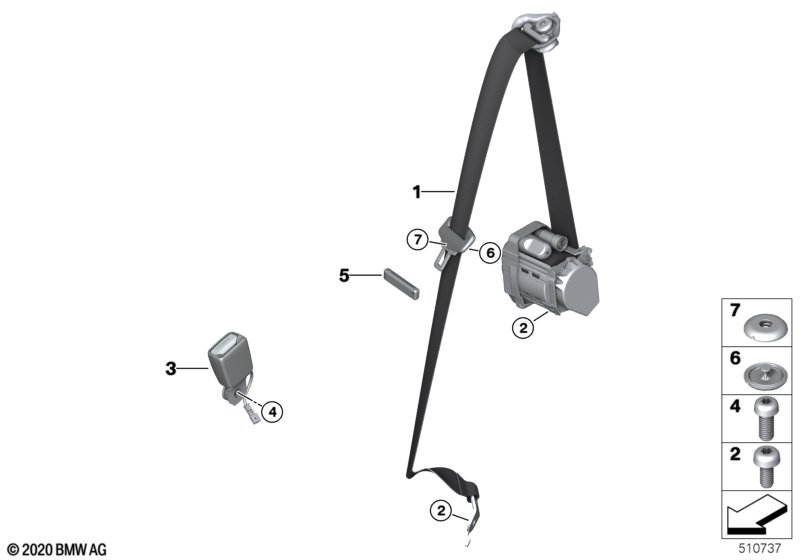

This Safety belt rear technical drawing provides a detailed breakdown of the assembly for the 4 Series G23 Convertible M440i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Attention Parts Manager. Per NHTSA regulations, please provide the applicable installation instructions to the customer when delivering the safety belt, and include all necessary information, e.g., tightening torques. Please refer to the BMW / MINI / Rolls- Royce Bulletins 000321 / 000221 / A0521, respectively. |
|||||||||
| For vehicles with M safety belts |
S4GQA=Yes |
|||||||||
| 01 | Upper belt rear left | M | 1 | 72118097833 | Shop at ECS Tuning | |||||
| 01 | Upper belt rear right | M | 1 | 72118097834 | Shop at ECS Tuning | |||||
| For vehicles with M safety belts |
S4GQA=No |
|||||||||
| 01 | Upper belt rear left | SCHWARZ | 1 | 72119476119 | Shop at ECS Tuning | |||||
| 01 | Upper belt rear right | SCHWARZ | 1 | 72119476120 | Shop at ECS Tuning | |||||
| For vehicles with M safety belts and Sensatec perforated/Canberra beige, ext. or Sensatec perforated/Canberra beige, ext. or Sensatec perforated/Canberra beige |
S4GQA=No KHFR=Yes KHFS=Yes KHFY=Yes |
|||||||||
| 01 | Upper belt rear left | CANBERRABEIGE | 1 | 72119476117 | Shop at ECS Tuning | |||||
| 01 | Upper belt rear right | CANBERRABEIGE | 1 | 72119476118 | Shop at ECS Tuning | |||||
| 02 | Fillister head screw | M10X22 | 4 | 07149148299 | Shop at ECS Tuning | |||||
| 03 | Lower strap rear outer | 2 | 72117442039 | Shop at ECS Tuning | ||||||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| 04 | Fillister head screw | M12X27 | 2 | 07149144403 | $1.16 | Shop at ECS Tuning | ||||
