Safety belt, REMA, front for BMW 4 Series G23 Convertible LCI 420i (2025)

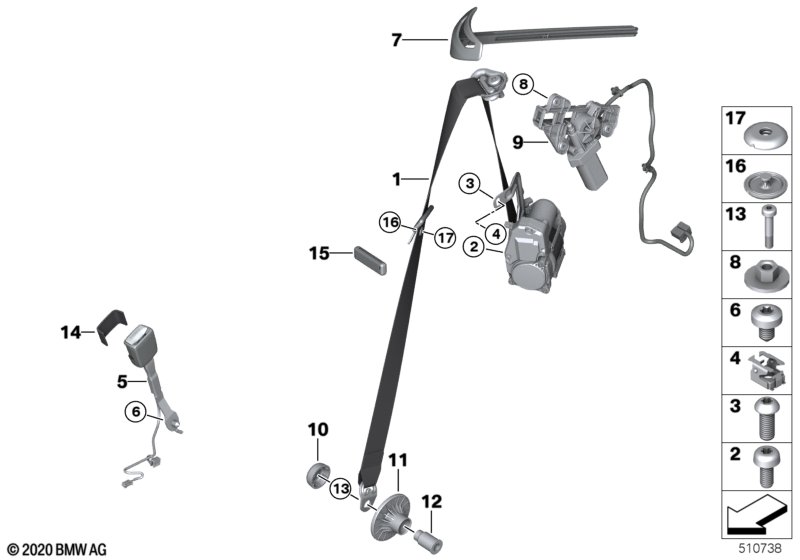

This Safety belt, REMA, front technical drawing provides a detailed breakdown of the assembly for the 4 Series G23 Convertible LCI 420i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.

Safety belt, REMA, front
No. Description Supp. Qty  From   Up To  Part Number Price Notes
  i Attention Parts Manager. Per NHTSA
regulations, please provide the
applicable installation instructions to
the customer when delivering the safety
belt, and include all necessary
information, e.g., tightening torques.
Please refer to the BMW / MINI / Rolls-
Royce Bulletins 000321 / 000221 /
A0521, respectively.
For vehicles with
National version Korea
and
National version China
and
M safety belts
and
Active Protection
L802A=No

L8AAA=No

S4GQA=Yes

S5ALA=Yes
01 Upper belt strap REMA on front left M 1 72118097809 Shop at ECS Tuning
When this safety component is being
sold,
for legal reasons the
product information (see: Parts
information -> Su
pplement) must be printed out and given
to the cu
stomer.
01 Upper belt strap REMA, front right M 1 72118097810 Shop at ECS Tuning
When this safety component is being
sold,
for legal reasons the
product information (see: Parts
information -> Su
pplement) must be printed out and given
to the cu
stomer.
For vehicles with
National version Korea
and
National version China
and
M safety belts
and
Active Protection
L802A=No

L8AAA=No

S4GQA=No

S5ALA=Yes
01 Upper belt strap REMA on front left SCHWARZ 1 72119870081 Shop at ECS Tuning
When this safety component is being
sold,
for legal reasons the
product information (see: Parts
information -> Su
pplement) must be printed out and given
to the cu
stomer.
01 Upper belt strap REMA, front right SCHWARZ 1 72119870082 Shop at ECS Tuning
When this safety component is being
sold,
for legal reasons the
product information (see: Parts
information -> Su
pplement) must be printed out and given
to the cu
stomer.
02 Fillister head screw M10X22 2 07149148299 Shop at ECS Tuning
03 Fillister head screw M8X20 2 41007243852 Shop at ECS Tuning
04 Tilting captive nut 2 07147398148 Shop at ECS Tuning
05 Lower strap, front 2 72117938033 Shop at ECS Tuning
When this safety component is being
sold,
for legal reasons the
product information (see: Parts
information -> Su
pplement) must be printed out and given
to the cu
stomer.
06 Screw M10X16 2 72119909471 Shop at ECS Tuning
07 Belt-handover, left 1 72117474849 Shop at ECS Tuning
07 Belt-handover, right 1 72117474850 Shop at ECS Tuning
08 Hex nut with plate M5 4 51169157035 Shop at ECS Tuning
09 Drive unit, left 1 72115A05245 Shop at ECS Tuning
09 Drive unit, right 1 72115A05246 Shop at ECS Tuning
10 Cover, belt reel 2 72117950593 Shop at ECS Tuning
11 Cover 2 72115A185A9 Shop at ECS Tuning
12 Bush 2 07149490380 Shop at ECS Tuning
13 Collar screw M10X55 2 07149483073 Shop at ECS Tuning
14 Set felt strip self-adhesive 2 51452353024 Shop at ECS Tuning
