Safety belt front for BMW 4 Series G26 Gran Coupé 420i (2024)

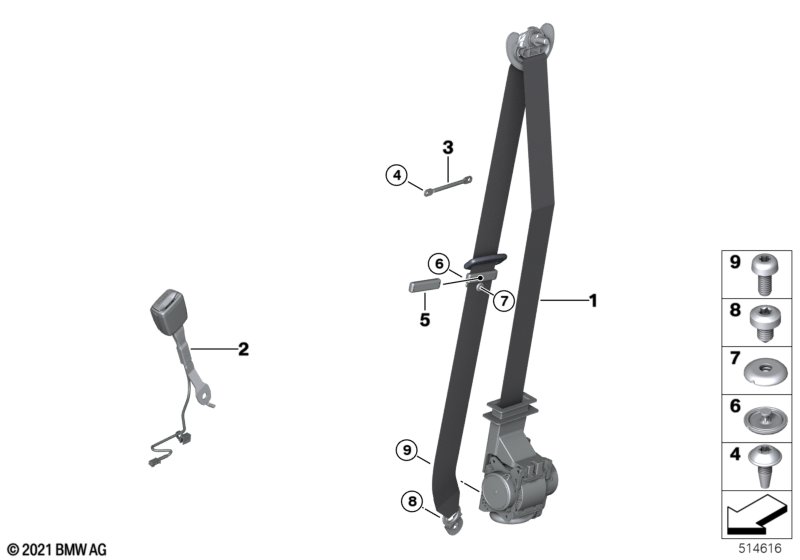

This Safety belt front technical drawing provides a detailed breakdown of the assembly for the 4 Series G26 Gran Coupé 420i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.

Safety belt front
No. Description Supp. Qty  From   Up To  Part Number Price Notes
  i Attention Parts Manager. Per NHTSA
regulations, please provide the
applicable installation instructions to
the customer when delivering the safety
belt, and include all necessary
information, e.g., tightening torques.
Please refer to the BMW / MINI / Rolls-
Royce Bulletins 000321 / 000221 /
A0521, respectively.
For vehicles with
Active Protection









S5ALA=No
For vehicles with
National version japan
and
M safety belts
and
Active Protection
L807A=Yes

S4GQA=No

S5ALA=No
01 Upper belt front left SCHWARZ 1 72117496289 NoS Shop at ECS Tuning
When this safety component is being
sold,
for legal reasons the
product information (see: Parts
information -> Su
pplement) must be printed out and given
to the cu
stomer.
01 Upper belt, front right SCHWARZ 1 72117496290 NoS Shop at ECS Tuning
When this safety component is being
sold,
for legal reasons the
product information (see: Parts
information -> Su
pplement) must be printed out and given
to the cu
stomer.
For vehicles with
National version japan
and
Extra package, EU-specific
and
M safety belts
and
Active Protection
L807A=No

S230A=Yes

S4GQA=No

S5ALA=No
01 Upper belt, front right CANBERRABEIGE 1 72117496292 NoS Shop at ECS Tuning
When this safety component is being
sold,
for legal reasons the
product information (see: Parts
information -> Su
pplement) must be printed out and given
to the cu
stomer.
01 Upper belt front left SCHWARZ 1 72117496293 NoS Shop at ECS Tuning
When this safety component is being
sold,
for legal reasons the
product information (see: Parts
information -> Su
pplement) must be printed out and given
to the cu
stomer.
01 Upper belt, front right SCHWARZ 1 72117496294 NoS Shop at ECS Tuning
When this safety component is being
sold,
for legal reasons the
product information (see: Parts
information -> Su
pplement) must be printed out and given
to the cu
stomer.
For vehicles with
National version japan
and
National version China
and
Extra package, EU-specific
and
M safety belts
and
Active Protection
L807A=Yes

L8AAA=No

S230A=Yes

S4GQA=Yes

S5ALA=No
01 Upper belt front left M 1 72118076363 NoS Shop at ECS Tuning
When this safety component is being
sold,
for legal reasons the
product information (see: Parts
information -> Su
pplement) must be printed out and given
to the cu
stomer.
For vehicles with
National version japan
and
National version China
and
Extra package, EU-specific
and
M safety belts
and
Active Protection
L807A=No

L8AAA=No

S230A=Yes

S4GQA=Yes

S5ALA=No
01 Upper belt front left M 1 72118076365 NoS Shop at ECS Tuning
When this safety component is being
sold,
for legal reasons the
product information (see: Parts
information -> Su
pplement) must be printed out and given
to the cu
stomer.
01 Upper belt, front right M 1 72118076366 NoS Shop at ECS Tuning
When this safety component is being
sold,
for legal reasons the
product information (see: Parts
information -> Su
pplement) must be printed out and given
to the cu
stomer.
For vehicles with
  National version japan
  and
  M safety belts
  and
  Active Protection
and
  Sensatec perforated/Canberra beige, ext.
  or
  Sensatec perforated/Canberra beige, ext.
L807A=Yes

S4GQA=No

S5ALA=No

KHFR=Yes

KHFS=Yes
01 Upper belt front left CANBERRABEIGE 1 72117496287 NoS Shop at ECS Tuning
When this safety component is being
sold,
for legal reasons the
product information (see: Parts
information -> Su
pplement) must be printed out and given
to the cu
stomer.
01 Upper belt, front right CANBERRABEIGE 1 72117496288 NoS Shop at ECS Tuning
When this safety component is being
sold,
for legal reasons the
product information (see: Parts
information -> Su
pplement) must be printed out and given
to the cu
stomer.
For vehicles with
National version Korea
and
National version japan
and
National version China
and
Extra package, EU-specific
and
M safety belts
and
Active Protection
L802A=No

L807A=No

L8AAA=No

S230A=No

S4GQA=Yes

S5ALA=No
01 Upper belt, front right M 1 72118076364 NoS Shop at ECS Tuning
When this safety component is being
sold,
for legal reasons the
product information (see: Parts
information -> Su
pplement) must be printed out and given
to the cu
stomer.
For vehicles with
  National version japan
  and
  Extra package, EU-specific
  and
  M safety belts
  and
  Active Protection
and
  Sensatec perforated/Canberra beige, ext.
  or
  Sensatec perforated/Canberra beige, ext.
L807A=No

S230A=Yes

S4GQA=No

S5ALA=No

KHFR=Yes

KHFS=Yes
01 Upper belt front left CANBERRABEIGE 1 72117496291 NoS Shop at ECS Tuning
When this safety component is being
sold,
for legal reasons the
product information (see: Parts
information -> Su
pplement) must be printed out and given
to the cu
stomer.
02 Lower strap, front 2 72115A01F85 Shop at ECS Tuning
When this safety component is being
sold,
for legal reasons the
product information (see: Parts
information -> Su
pplement) must be printed out and given
to the cu
stomer.
03 Transfer fitting 2 72117453790 Shop at ECS Tuning
04 Sheet metal screw ISA M5X12 4 07149158177 $0.25 Shop at ECS Tuning
08 Countersunk screw M10X16-8.8 SW 2 07119908419 Shop at ECS Tuning
09 Fillister head screw M10X22 2 07149148299 Shop at ECS Tuning
Notes
  • NoS = No Stock (Part centrally not stocked)
