Safety belt rear for BMW 4 Series G26 Gran Coupé 430dX (2024)

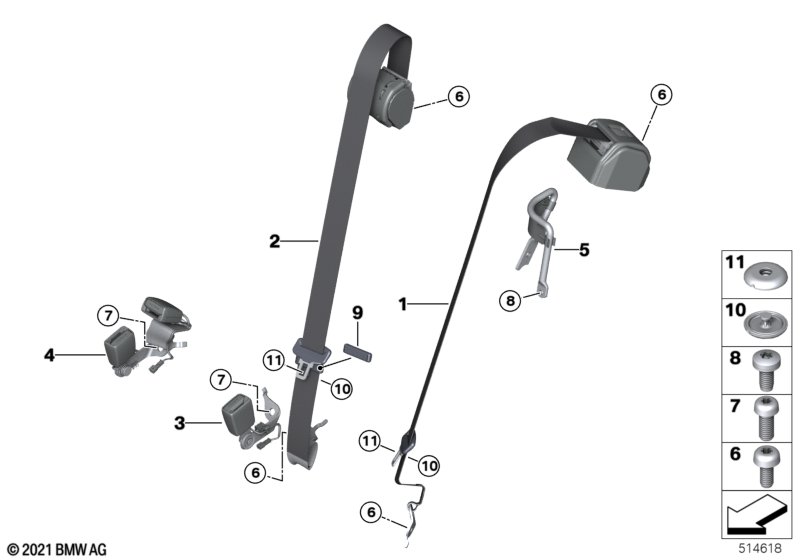

This Safety belt rear technical drawing provides a detailed breakdown of the assembly for the 4 Series G26 Gran Coupé 430dX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Attention Parts Manager. Per NHTSA regulations, please provide the applicable installation instructions to the customer when delivering the safety belt, and include all necessary information, e.g., tightening torques. Please refer to the BMW / MINI / Rolls- Royce Bulletins 000321 / 000221 / A0521, respectively. |
|||||||||
| For vehicles with Extra package, EU-specific and M safety belts |
S230A=No S4GQA=No |
|||||||||
| 01 | Upper belt rear | SCHWARZ | 2 | 72115A0C308 | Shop at ECS Tuning | |||||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| For vehicles with Extra package, EU-specific and M safety belts |
S230A=No S4GQA=Yes |
|||||||||
| 01 | Upper belt rear left | M | 1 | 72115A0C3F3 | Shop at ECS Tuning | |||||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| 01 | Upper belt rear right | M | 1 | 72115A0C684 | Shop at ECS Tuning | |||||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| For vehicles with Extra package, EU-specific and M safety belts |
S230A=Yes S4GQA=No |
|||||||||
| 01 | Top belt, rear outside | SCHWARZ | 2 | 72115A0C301 | Shop at ECS Tuning | |||||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| For vehicles with Extra package, EU-specific and M safety belts |
S230A=Yes S4GQA=Yes |
|||||||||
| 01 | Upper belt rear left | M | 1 | 72115A0C3F1 | Shop at ECS Tuning | |||||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| 01 | Upper belt rear right | M | 1 | 72115A0C682 | Shop at ECS Tuning | |||||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| For vehicles with Extra package, EU-specific and M safety belts and Sensatec perforated/Canberra beige, ext. or Sensatec perforated/Canberra beige, ext. or Sensatec perforated/Canberra beige |
S230A=No S4GQA=No KHFR=Yes KHFS=Yes KHFY=Yes |
|||||||||
| 01 | Top belt, rear outside | CANBERRABEIGE | 2 | 72115A0C307 | Shop at ECS Tuning | |||||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| For vehicles with Extra package, EU-specific and M safety belts and Sensatec perforated/Canberra beige, ext. or Sensatec perforated/Canberra beige, ext. or Sensatec perforated/Canberra beige |
S230A=Yes S4GQA=No KHFR=Yes KHFS=Yes KHFY=Yes |
|||||||||
| 01 | Top belt, rear outside | CANBERABEIGE | 2 | 72115A0C300 | Shop at ECS Tuning | |||||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| For vehicles with M safety belts |
S4GQA=Yes |
|||||||||
| 02 | REAR center UPPER BELT | M | 1 | 72115A0C3E9 | Shop at ECS Tuning | |||||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| For vehicles with M safety belts |
S4GQA=No |
|||||||||
| 02 | REAR center UPPER BELT | SCHWARZ | 1 | 72115A0C2F7 | Shop at ECS Tuning | |||||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| For vehicles with M safety belts and Sensatec perforated/Canberra beige, ext. or Sensatec perforated/Canberra beige, ext. or Sensatec perforated/Canberra beige |
S4GQA=No KHFR=Yes KHFS=Yes KHFY=Yes |
|||||||||
| 02 | REAR center UPPER BELT | CANBERABEIGE | 1 | 72115A0C2F6 | Shop at ECS Tuning | |||||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| 03 | Lower belt rear left | 1 | 72117442031 | NoS | Shop at ECS Tuning | |||||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| 04 | Lower belt rear right | 1 | 72117442030 | NoS | Shop at ECS Tuning | |||||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| 05 | Belt deflector left | 1 | 72117938041 | Shop at ECS Tuning | ||||||
| 05 | Belt deflector right | 1 | 72117938042 | Shop at ECS Tuning | ||||||
| 06 | Fillister head screw | M10X22 | 6 | 07149148299 | Shop at ECS Tuning | |||||
| 07 | Fillister head screw | M12X27 | 2 | 07149144403 | $1.16 | Shop at ECS Tuning | ||||
| 08 | Countersunk screw | M8X16 | 4 | 07119907270 | Shop at ECS Tuning | |||||
Notes
- NoS = No Stock (Part centrally not stocked)
