Safety belt front for BMW 2 Series U06 Active Tourer 220i (2025)

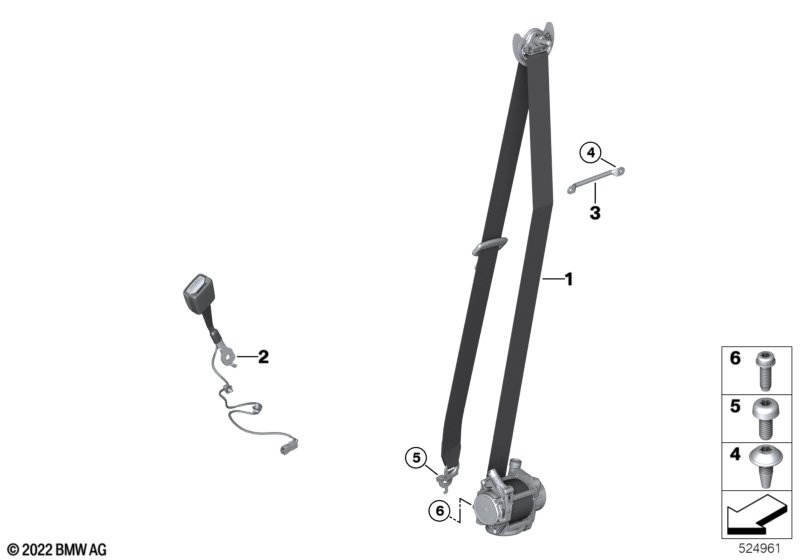

This Safety belt front technical drawing provides a detailed breakdown of the assembly for the 2 Series U06 Active Tourer 220i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Attention Parts Manager. Per NHTSA regulations, please provide the applicable installation instructions to the customer when delivering the safety belt, and include all necessary information, e.g., tightening torques. Please refer to the BMW / MINI / Rolls- Royce Bulletins 000321 / 000221 / A0521, respectively. |
|||||||||
| 01 | Upper belt front left | 1 | 07/2023 | 72119493841 | Shop at ECS Tuning | |||||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| 01 | Upper belt, front right | 1 | 07/2023 | 72119493842 | Shop at ECS Tuning | |||||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| 02 | Lower strap, front | 2 | 52109493485 | Shop at ECS Tuning | ||||||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| 03 | Transfer fitting | 2 | 72117271542 | Shop at ECS Tuning | ||||||
| 04 | Sheet metal screw | ISA M5X12 | 4 | 07149158177 | $0.25 | Shop at ECS Tuning | ||||
| 05 | Fillister head screw | M10X22 | 2 | 07149148299 | Shop at ECS Tuning | |||||
| 06 | Fillister-head screw | M10X28 | 2 | 07149321690 | Shop at ECS Tuning | |||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 2 Series U06 Active Tourer 220i Safety belt front?
- This technical diagram illustrates the Safety belt front within the Restraint system and Accessories group for the 2 Series U06 Active Tourer 220i produced during 2025. It provides a detailed exploded view of the components, identifying key parts such as the Upper belt front left (Part #72119493841).
- Which models use the hardware listed in this Safety belt front?
- The hardware and components featured in the Safety belt front are specific to the 2 Series U06 Active Tourer 220i produced during 2025. These technical specifications ensure that parts like the Upper belt front left (72119493841) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Safety belt front assembly?
- Each item in the Safety belt front corresponds to the numbered list below the illustration. For the 2 Series U06 Active Tourer 220i, you can identify the Upper belt front left by locating its position on the schematic, which then links to the official BMW part number 72119493841 for the Restraint system and Accessories section.
