Safety belt rear for BMW 2 Series U06 Active Tourer 218i (2024)

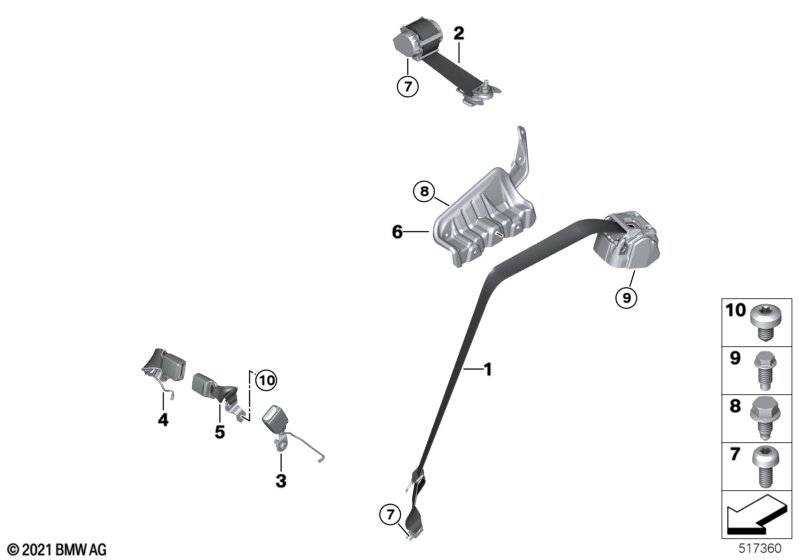

This Safety belt rear technical drawing provides a detailed breakdown of the assembly for the 2 Series U06 Active Tourer 218i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Attention Parts Manager. Per NHTSA regulations, please provide the applicable installation instructions to the customer when delivering the safety belt, and include all necessary information, e.g., tightening torques. Please refer to the BMW / MINI / Rolls- Royce Bulletins 000321 / 000221 / A0521, respectively. |
|||||||||
| 01 | Top belt, rear outside | 2 | 03/2023 | 72119493868 | Shop at ECS Tuning | |||||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| 02 | REAR center UPPER BELT | 1 | 72119493878 | Shop at ECS Tuning | ||||||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| 03 | Lower belt rear left | 1 | 52209493633 | Shop at ECS Tuning | ||||||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| 03 | Lower belt rear right | 1 | 52209493634 | Shop at ECS Tuning | ||||||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| 04 | Lower belt rear center | 1 | 52209493638 | Shop at ECS Tuning | ||||||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| 05 | Belt buckle, center rear | 1 | 52209493640 | Shop at ECS Tuning | ||||||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| 06 | Belt guide left | 1 | 72119493895 | Shop at ECS Tuning | ||||||
| 06 | Belt guide right | 1 | 72119493896 | Shop at ECS Tuning | ||||||
| 07 | Fillister head screw | M10X22 | 3 | 07149148299 | Shop at ECS Tuning | |||||
| 08 | Hex bolt | M8X14-8.8-ZNS3 | 8 | 07119906977 | Shop at ECS Tuning | |||||
| 09 | Hex bolt | M10X24 | 2 | 72117949437 | Shop at ECS Tuning | |||||
| 10 | Fillister head screw with collar | M10X22 | 1 | 07147163333 | $1.16 | Shop at ECS Tuning | ||||
