Airbag for BMW 7 Series G70 740iX (2025)

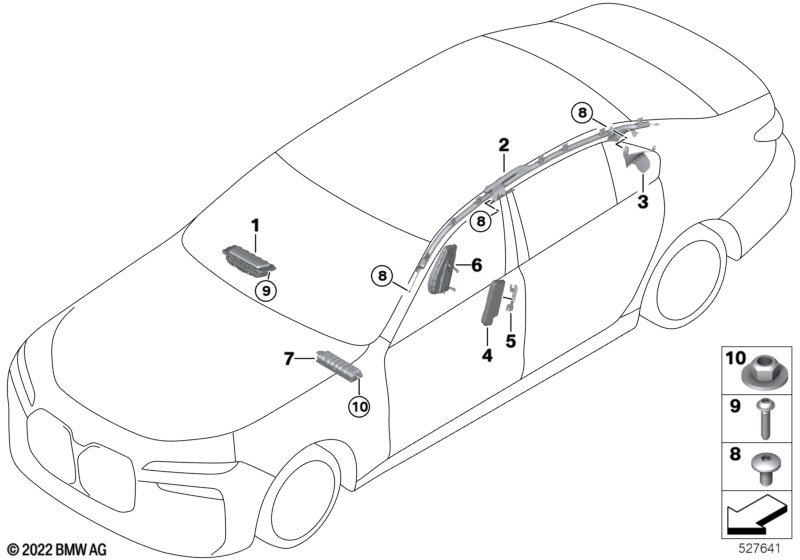

This Airbag technical drawing provides a detailed breakdown of the assembly for the 7 Series G70 740iX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Airbag unit front passenger side | 1 | 72126943914 | Shop at ECS Tuning | ||||||
| 02 | Head airbag left | 1 | 72129459297 | Shop at ECS Tuning | ||||||
| 02 | Head airbag right | 1 | 72129459298 | Shop at ECS Tuning | ||||||
| 03 | Ramp C-pillar left | 1 | 72129873151 | Shop at ECS Tuning | ||||||
| 03 | Ramp C-pillar right | 1 | 72129873152 | Shop at ECS Tuning | ||||||
| 04 | Side airbag, front left seat | 1 | 72126932163 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| 04 | Side airbag, front right seat | 1 | 72126932164 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Mounting kit nuts | 1 | 52105B477A5 | Shop at ECS Tuning | ||||||
| 05 | Holder airbag left | 1 | 72125A21B33 | Shop at ECS Tuning | ||||||
| 05 | Holder airbag right | 1 | 72125A21B34 | Shop at ECS Tuning | ||||||
| For vehicles with National version Korea and Extra package, EU-specific |
L802A=Yes S230A=Yes |
|||||||||
| 06 | Central airbag, left | 1 | 72126935799 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Mounting kit nuts | 2 | 52105B477A5 | Shop at ECS Tuning | ||||||
| For vehicles with National version Korea and Extra package, EU-specific |
L802A=Yes S230A=No |
|||||||||
| 06 | Central airbag, left | 1 | 72126935799 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Mounting kit nuts | 2 | 52105B477A5 | Shop at ECS Tuning | ||||||
| For vehicles with National version Korea and Extra package, EU-specific |
L802A=No S230A=Yes |
|||||||||
| 06 | Central airbag, left | 1 | 72126935799 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Mounting kit nuts | 2 | 52105B477A5 | NoS | Shop at ECS Tuning | |||||
| 08 | Fillister head screw | M6X12 | 16 | 51439496586 | Shop at ECS Tuning | |||||
| 09 | Fillister head screw | 1 | 07149272649 | Shop at ECS Tuning | ||||||
Notes
- NoS = No Stock (Part centrally not stocked)
