Airbag for BMW 5 Series G60 Sedan 520i (2025)

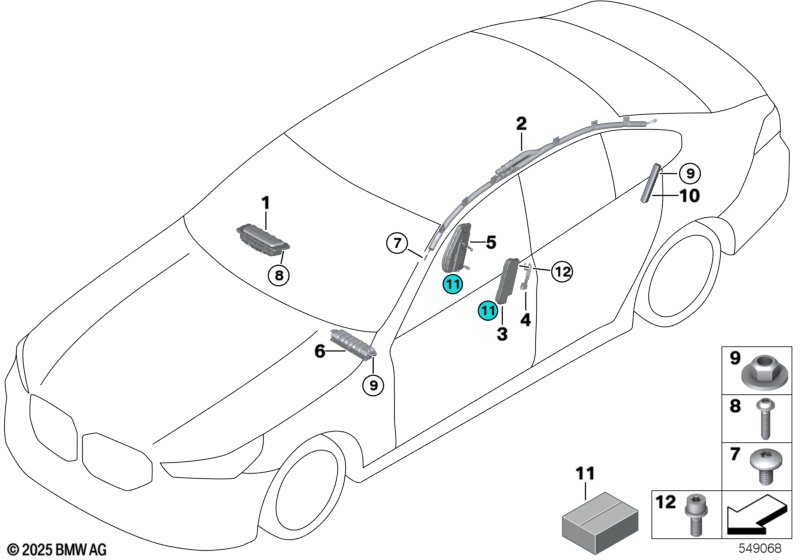

This Airbag technical drawing provides a detailed breakdown of the assembly for the 5 Series G60 Sedan 520i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Airbag unit front passenger side | 1 | 72126943914 | Shop at ECS Tuning | ||||||
| For vehicles with National version China and Electric panoramic roof |
L8AAA=No S402A=Yes |
|||||||||
| 02 | Head airbag left | PANORAM.SUNROOF | 1 | 72125A276C7 | Shop at ECS Tuning | |||||
| 02 | Head airbag right | PANORAM.SUNROOF | 1 | 72125A276C8 | Shop at ECS Tuning | |||||
| For vehicles with National version China and Electric panoramic roof |
L8AAA=No S402A=No |
|||||||||
| 02 | Head airbag left | 1 | 72129418711 | Shop at ECS Tuning | ||||||
| 02 | Head airbag right | 1 | 72129418712 | Shop at ECS Tuning | ||||||
| 03 | Side airbag, front left seat | 1 | 72125A04C67 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| 03 | Side airbag, front right seat | 1 | 72125A04C68 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Mounting kit nuts | 2 | 52105B477A5 | Shop at ECS Tuning | ||||||
| 04 | Holder airbag left | 1 | 72125A21B33 | Shop at ECS Tuning | ||||||
| 04 | Holder airbag right | 1 | 72125A21B34 | Shop at ECS Tuning | ||||||
| For vehicles with Extra package, EU-specific |
S230A=Yes |
|||||||||
| 05 | Central airbag, right | 1 | 72125A04C82 | NoS | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Mounting kit nuts | 2 | 52105B477A5 | Shop at ECS Tuning | ||||||
| 07 | Fillister head screw | M6X12 | 8 | 51439496586 | Shop at ECS Tuning | |||||
| Front passenger airbag to airbag chute channel |
||||||||||
| 08 | Fillister head screw | 1 | 07149272649 | Shop at ECS Tuning | ||||||
| Airbag an Halter | ||||||||||
| 11 | Mounting kit nuts | 1 | 52105B477A5 | NoS | Shop at ECS Tuning | |||||
| Halter an Sitz | ||||||||||
| 12 | Torx-bolt with washer | M6X16-8.8-ZNNIV | 2 | 07129904819 | $0.38 | Shop at ECS Tuning | ||||
Notes
- NoS = No Stock (Part centrally not stocked)
