Safety belt front for BMW 5 Series G90 M5 M5 (2025)

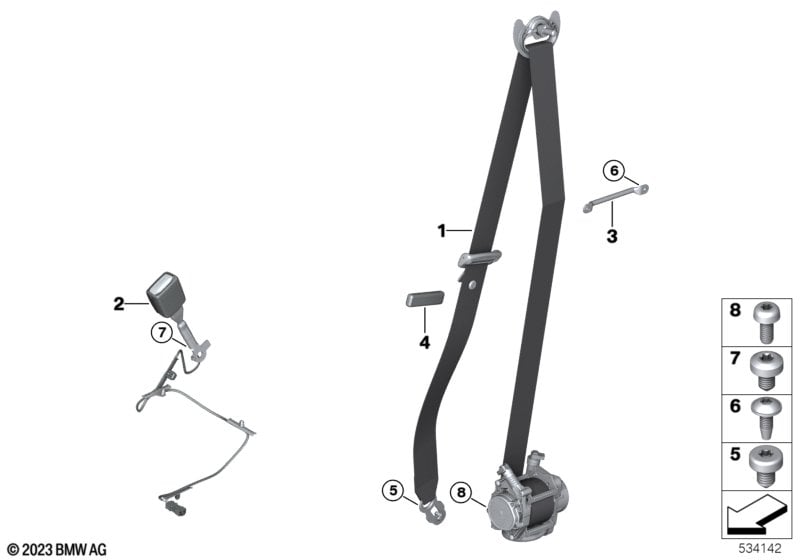

This Safety belt front technical drawing provides a detailed breakdown of the assembly for the 5 Series G90 M5 M5. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Attention Parts Manager. Per NHTSA regulations, please provide the applicable installation instructions to the customer when delivering the safety belt, and include all necessary information, e.g., tightening torques. Please refer to the BMW / MINI / Rolls- Royce Bulletins 000321 / 000221 / A0521, respectively. For vehicles with Driving assistant professional |
S5AUA=No |
||||||||
| For vehicles with M safety belts |
S4GQA=Yes |
|||||||||
| 01 | Shoulder belt right front | 1 | 52108083100 | NoS | Shop at ECS Tuning | |||||
| 01 | Shoulder belt left front | 1 | 52108083103 | NoS | Shop at ECS Tuning | |||||
| For vehicles with M safety belts |
S4GQA=No |
|||||||||
| 01 | Shoulder belt left front | SCHWARZ | 1 | 72115A32DF3 | NoS | Shop at ECS Tuning | ||||
| 01 | Shoulder belt right front | SCHWARZ | 1 | 72115A33070 | NoS | Shop at ECS Tuning | ||||
| 02 | Lower strap | SCHWARZ | 2 | 72115A74570 | Shop at ECS Tuning | |||||
| 03 | Transfer fitting | 2 | 72119461762 | Shop at ECS Tuning | ||||||
| 04 | Clamping | SCHWARZ | 2 | 72115A711C0 | NoS | Shop at ECS Tuning | ||||
| 05 | Torx screw | M10X50 8.8 | 2 | 72115A5A464 | Shop at ECS Tuning | |||||
| 06 | Fillister head screw | M5X16 | 4 | 07146972074 | Shop at ECS Tuning | |||||
| 07 | Screw | M10X16 | 2 | 72119909471 | Shop at ECS Tuning | |||||
| 08 | Fillister head screw | M10X22 | 2 | 07149148299 | Shop at ECS Tuning | |||||
Notes
- NoS = No Stock (Part centrally not stocked)
