Transmission oil for BMW 5 Series E39 525d (2003)

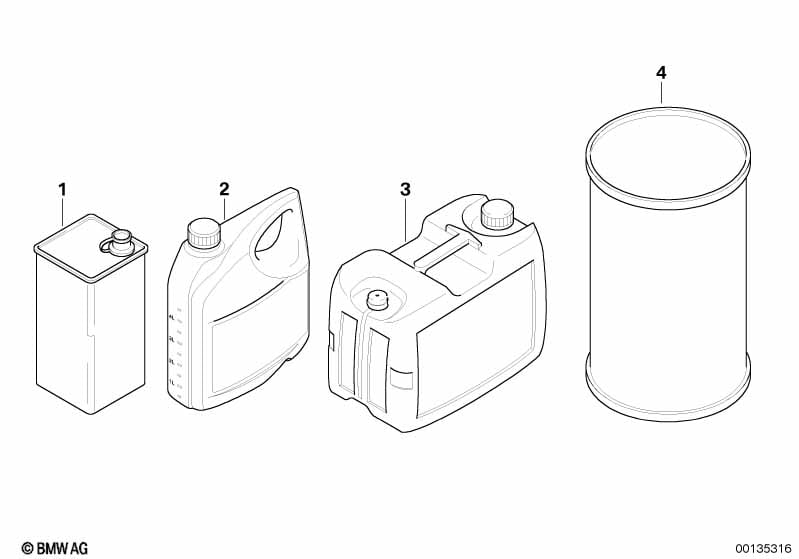

This Transmission oil technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 525d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| E36: From 97 shutdown all manual gearboxes (B, C, D) life-time oil. E39: From 97 shutdown only life-time oil. All E46 (start 12/97) only lifetime oil. All E60, E61, E63, E64, E53 (X5), E62 (Z8). |
||||||||||
| 02 | Oil for manual transmission MTF LT-2 | 5000ML | 1 | 83220309031 | $183.10 | ENDED | Shop at ECS Tuning | |||
| 02 | Oil for manual transmission MTF-lt-2 | 1000ML, TU | 1 | 83220396705 | Shop at ECS Tuning | |||||
| only applies to | ||||||||||
| -- | RP REMAN 5-gear transmission | S5D 320Z - THMX | X | 23001434450 | ENDED, +core | Shop at ECS Tuning | ||||
| TU = Trade Unit (sales unit for commercial transactions; formerly DIP = Dealer Individual Part). For Germany only. |
||||||||||
| -- | RP REMAN 5-gear transmission | S5D 260Z - THMY | X | 23001434452 | ENDED, +core | Shop at ECS Tuning | ||||
| TU = Trade Unit (sales unit for commercial transactions; formerly DIP = Dealer Individual Part). For Germany only. |
||||||||||
| -- | Exch. 5 speed gearbox | S5D 320Z - THMW | X | 23001434453 | Shop at ECS Tuning | |||||
| TU = Trade Unit (sales unit for commercial transactions; formerly DIP = Dealer Individual Part). For Germany only. |
||||||||||
| -- | Exch. 5 speed gearbox | S5D 320Z - THMW | X | 23001434485 | $3177.17 | ENDED, +core | Shop at ECS Tuning | |||
| TU = Trade Unit (sales unit for commercial transactions; formerly DIP = Dealer Individual Part). For Germany only. |
||||||||||
| -- | Exch. 6 speed gearbox | S6S 420G - TBAA | X | 23001434488 | $4468.06 | ENDED | Shop at ECS Tuning | |||
| TU = Trade Unit (sales unit for commercial transactions; formerly DIP = Dealer Individual Part). For Germany only. |
||||||||||
| -- | 6-speed manual transmission | S6S 420G - TBAD | X | 23001434517 | ENDED | Shop at ECS Tuning | ||||
| TU = Trade Unit (sales unit for commercial transactions; formerly DIP = Dealer Individual Part). For Germany only. |
||||||||||
| -- | RP REMAN 6-gear transmission | S6S 420G - TBAF | X | 23007501757 | $4468.06 | Shop at ECS Tuning | ||||
| TU = Trade Unit (sales unit for commercial transactions; formerly DIP = Dealer Individual Part). For Germany only. |
||||||||||
| 03 | Manual Transmission Fluid MTF 1 | 1 LITER | 1 | 81222339384 | ENDED | Shop at ECS Tuning | ||||
| 03 | Oil for manual transmission sae 80 | 1000ML, TU | 1 | 81229401225 | Shop at ECS Tuning | |||||
| TU = Trade Unit (sales unit for commercial transactions; formerly DIP = Dealer Individual Part). For Germany only. |
||||||||||
| 04 | Manual Transmission Fluid MTF 1 | 1 LITER | 1 | 81222339384 | ENDED | Shop at ECS Tuning | ||||
| 04 | Oil for manual transmission sae 80 | 208L | 1 | 81229407178 | ENDED | Shop at ECS Tuning | ||||
| E31: all manual gearboxes with ATF oil. E36: Before 97 shutdown all manual gearboxes with ATF oil. |
||||||||||
| 04 | BMW automatic transmission fluid D 2 | 1L | 1 | 81229400272 | Shop at ECS Tuning | |||||
| 04 | Automatic transmission oil Dexron II | 1000ML, TU | 1 | 81229401220 | Shop at ECS Tuning | |||||
| TU = Trade Unit (sales unit for commercial transactions; formerly DIP = Dealer Individual Part). For Germany only. |
||||||||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
