Single parts, SA 627, trunk for BMW 3 Series E46 320Ci (2006)

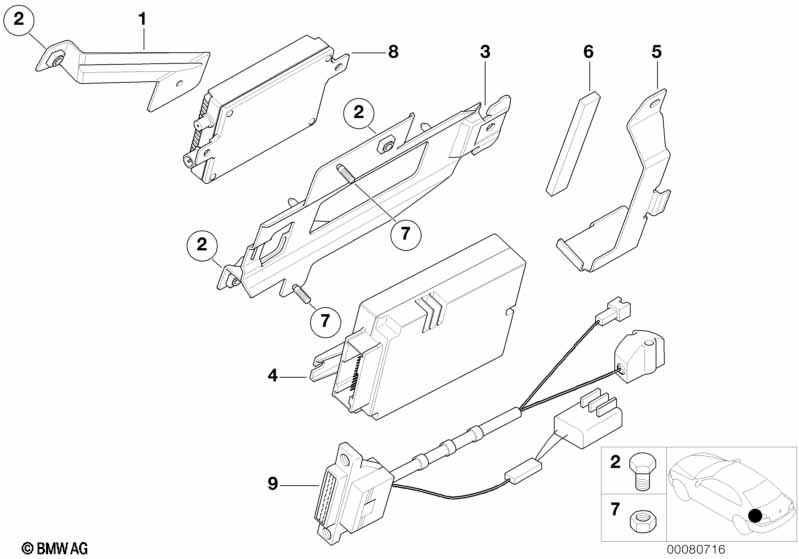

This Single parts, SA 627, trunk technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 320Ci. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2006.

Single parts, SA 627, trunk
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Mount f transmitter-receiver bracket MOTOROLA 1 84138385633 $3.89 ENDED Shop at ECS Tuning
02 Hex bolt M5X10 4 07119904442 $0.80 Shop at ECS Tuning
03 Bracket transmitter-receiver MOTOROLA 1 84138378549 $12.84 ENDED Shop at ECS Tuning
04 D network handy interface SIEMENS/NOKIA 1 84216916909 ENDED Shop at ECS Tuning
05 Fixing bow 1 84136903408 $4.91 ENDED Shop at ECS Tuning
06 Sealing strip 2 51411970578 $0.22 Shop at ECS Tuning
07 Hex nut with plate M5 2 63259128043 $0.72 Shop at ECS Tuning
08 D network handy line compensator SIEMENS/NOKIA 1 84218386576 ENDED Shop at ECS Tuning
Notes
  • ENDED = the part has been discontinued (no longer available).
