Single parts SA 620, trunk for BMW 3 Series E46 320i (2000)

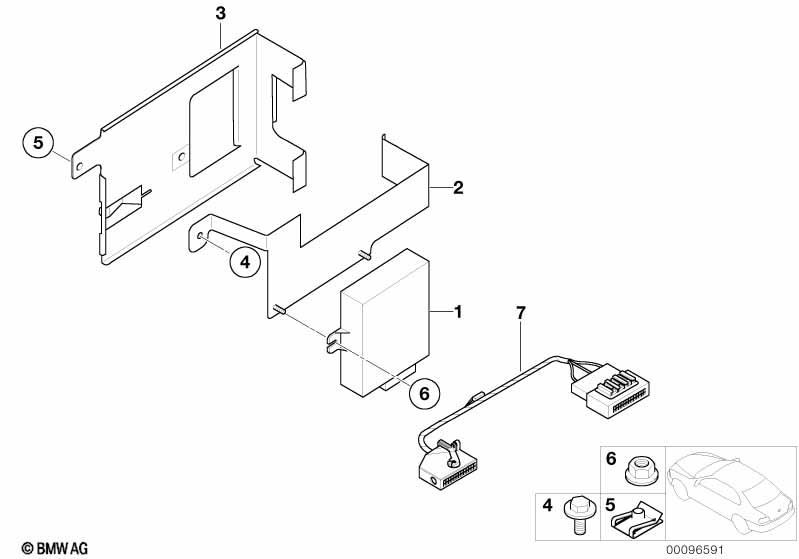

This Single parts SA 620, trunk technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.

Single parts SA 620, trunk
No. Description Supp. Qty  From   Up To  Part Number Price Notes
For vehicles with
National version Germany
L801A=Yes
01 Control unit, voice input system DE 1 84416915046 Shop at ECS Tuning
For vehicles with
National version England / Ireland
L812A=Yes
01 Control unit, voice input system EN 1 84416915047 $807.57 Shop at ECS Tuning
02 Bracket,control unit, voice input system 1 84138386917 $9.71 ENDED Shop at ECS Tuning
For vehicles with
Navigation system Professional
S609A=Yes
03 Bracket for video module 1 65508378548 $15.55 Shop at ECS Tuning
04 Hex bolt M5X14 3 07119902932 $0.53 Shop at ECS Tuning
05 Body nut M5 3 61131372033 $1.37 Shop at ECS Tuning
06 Hex nut with plate M5 2 63259128043 $0.72 Shop at ECS Tuning
07 Adapter lead 1 61126921225 $65.23 Shop at ECS Tuning
Notes
  • ENDED = the part has been discontinued (no longer available).
