Single parts, SA 629, trunk for BMW 5 Series E39 528i (2000)

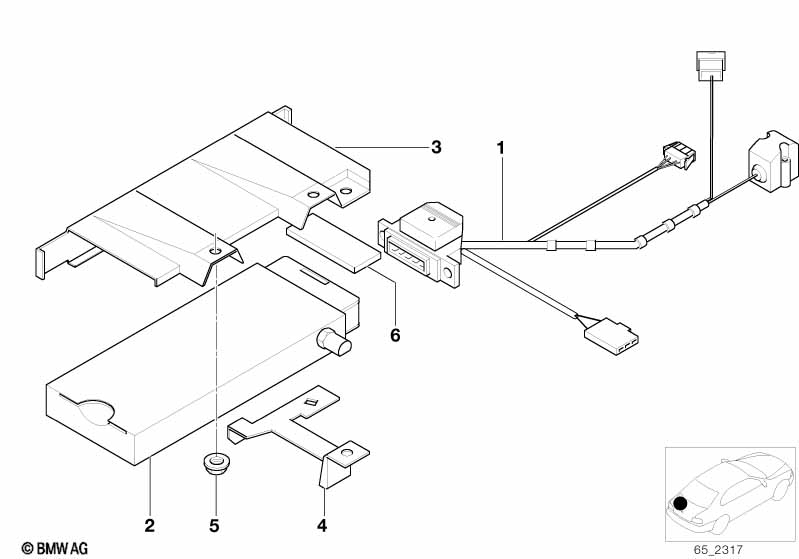

This Single parts, SA 629, trunk technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 528i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.

Single parts, SA 629, trunk
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Car telephone connection cable 1 03/1997 61128373674 $156.95 ENDED Shop at ECS Tuning
02 Transceiver E-38 1 84111469102 Shop at ECS Tuning
02 Transmitter-receiver MOTOROLA D-NETZ 1 84118360610 $616.00 ENDED Shop at ECS Tuning
02 Transmitter-receiver MOTOROLA V PLUS 1 03/1997 84116911042 ENDED Shop at ECS Tuning
03 Bracket transmitter-receiver 1 84138361643 $5.03 ENDED Shop at ECS Tuning
04 Fixing bow f transmitter-receiver MOTOROLA 1 84136902490 $4.62 Shop at ECS Tuning
05 Hex nut AM5-8-ZNNIV SI 2 07129904319 $0.36 Shop at ECS Tuning
06 Sealing strip 1 51411970578 $0.22 Shop at ECS Tuning
Notes
  • ENDED = the part has been discontinued (no longer available).
