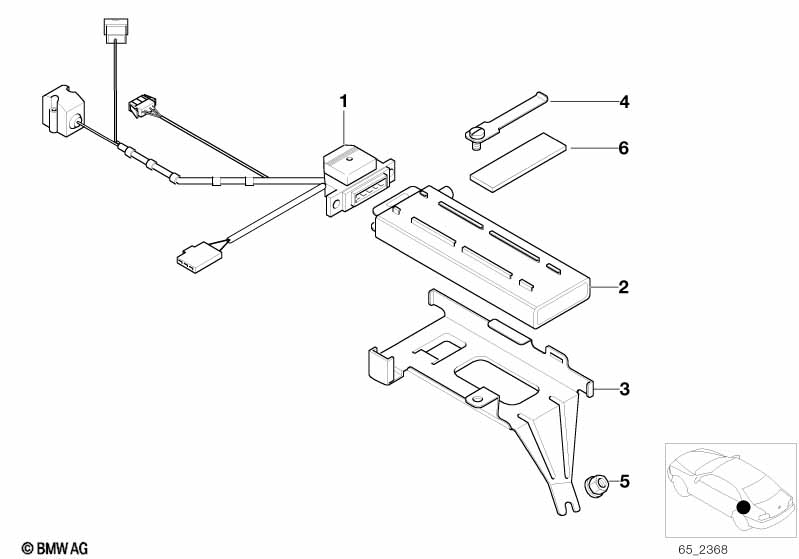

Single parts, SA 629, trunk for BMW 5 Series E39 525d (2003)

This Single parts, SA 629, trunk technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 525d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.

Single parts, SA 629, trunk
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Car telephone connection cable 1 09/1998 61128383886 ENDED Shop at ECS Tuning
For vehicles with
Voice control
S620A=Yes
01 Car telephone connection cable 1 09/1998 61128383889 ENDED Shop at ECS Tuning
For vehicles with
Telephone preparation
=Yes
01 Car telephone connection cable 1 09/1997 61128380844 $200.88 ENDED Shop at ECS Tuning
For vehicles with
Voice control
and
Preparation f tel.installation universal
S620A=Yes

S640A=Yes
01 Car telephone connection cable 1 09/1998 61128383892 ENDED Shop at ECS Tuning
02 Transmitter-receiver MOTOROLA V PLUS 1 84116911042 ENDED Shop at ECS Tuning
03 Bracket transmitter-receiver 1 84138371304 $6.92 ENDED Shop at ECS Tuning
04 Fixing bow f transmitter-receiver 1 84138372206 $2.85 ENDED Shop at ECS Tuning
05 Cap nut M5 2 51711934930 $0.23 Shop at ECS Tuning
06 Sealing strip 2 51411970578 $0.22 Shop at ECS Tuning
Notes
  • ENDED = the part has been discontinued (no longer available).
