Single parts f window antenna for BMW 5 Series E39 528i (2000)

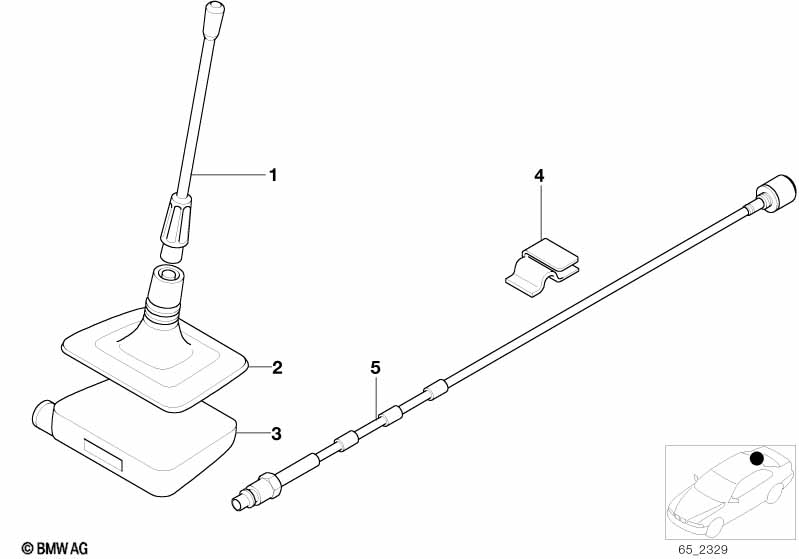

This Single parts f window antenna technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 528i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.

Single parts f window antenna
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Antenna radiator D-NETZ 80MM 1 09/2000 84508369459 $22.08 Shop at ECS Tuning
01 Antenna radiator D-NETZ 275MM 1 09/2000 84508369460 $39.14 +core Shop at ECS Tuning
02 Rear window telephone antenna base D-NETZ 1 09/2000 84508369458 $20.04 Shop at ECS Tuning
03 Connecting box D-NETZ 1 05/1996 09/2000 84508372699 $33.83 Shop at ECS Tuning
04 Antenna cable clip 3 84548369487 $0.53 Shop at ECS Tuning
05 Antenna cable FAKRA/QUIKLOCK 1 61120140373 $39.25 ENDED Shop at ECS Tuning
05 Antenna cable D-NETZ 2050MM 1 05/1996 09/2001 61128372755 $40.82 ENDED Shop at ECS Tuning
Notes
  • +core = plus core charge (possibility of a return of the old part)
  • ENDED = the part has been discontinued (no longer available).
