Single parts, SA 627, trunk for BMW 5 Series E39 528i (2000)

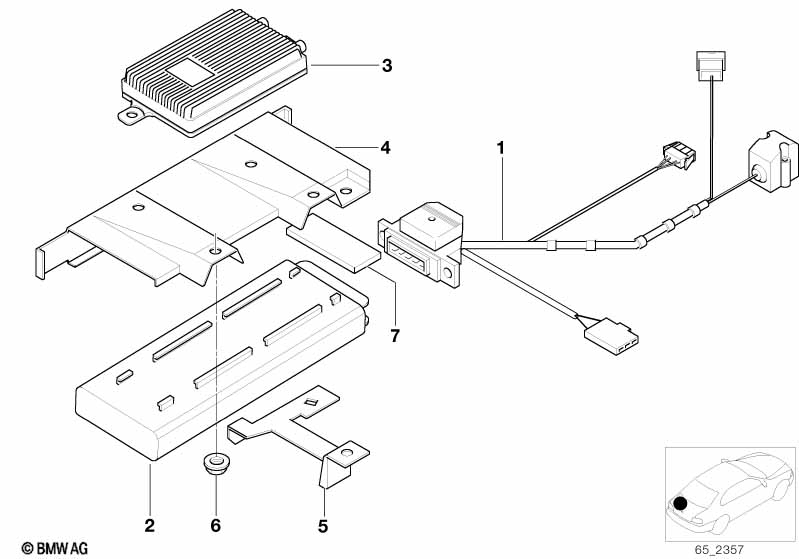

This Single parts, SA 627, trunk technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 528i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.

Single parts, SA 627, trunk
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 D network handy connection cable NOKIA/SIEMENS 1 61128383879 ENDED Shop at ECS Tuning
For vehicles with
Voice control
S620A=Yes
01 D network handy connection cable NOKIA/SIEMENS 1 09/1998 61128383883 ENDED Shop at ECS Tuning
02 D network handy interface SIEMENS/NOKIA 1 09/1999 84216916909 ENDED Shop at ECS Tuning
03 D network handy line compensator SIEMENS/NOKIA 1 84218386576 ENDED Shop at ECS Tuning
04 Bracket transmitter-receiver 1 84138361643 $5.03 ENDED Shop at ECS Tuning
05 Fixing bow f transmitter-receiver MOTOROLA 1 84136902490 $4.62 Shop at ECS Tuning
06 Hex nut AM5-8-ZNNIV SI 4 07129904319 $0.36 Shop at ECS Tuning
07 Sealing strip 2 51411970578 $0.22 Shop at ECS Tuning
Notes
  • ENDED = the part has been discontinued (no longer available).
