Single parts f SA 625 luggage compartm. for BMW 5 Series E39 525d (2003)

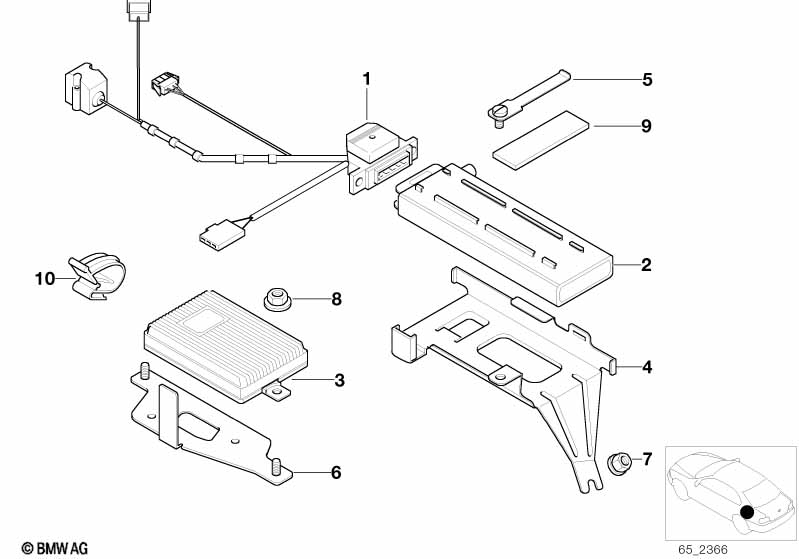

This Single parts f SA 625 luggage compartm. technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 525d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.

Single parts f SA 625 luggage compartm.
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 D network handy connection cable MOTOROLA 1 09/1998 61128383887 ENDED Shop at ECS Tuning
For vehicles with
Voice control
S620A=Yes
01 D network handy connection cable MOTOROLA 1 09/1998 61128383890 ENDED Shop at ECS Tuning
02 D network handy charging electronics MOTOROLA 1 84218370829 $156.24 ENDED Shop at ECS Tuning
03 D network handy line compensator MOTOROLA 8700 1 84218372374 Shop at ECS Tuning
04 Bracket transmitter-receiver 1 84138371304 $6.92 ENDED Shop at ECS Tuning
05 Fixing bow f transmitter-receiver 1 84138372206 $2.85 ENDED Shop at ECS Tuning
06 D network handy line compensator bracket 1 84218375638 ENDED Shop at ECS Tuning
07 Cap nut M5 2 51711934930 $0.23 Shop at ECS Tuning
08 Hex nut AM5-8-ZNNIV SI 4 07129904319 $0.36 Shop at ECS Tuning
09 Sealing strip 2 51411970578 $0.22 Shop at ECS Tuning
10 Clamp 1 61131382377 $0.62 Shop at ECS Tuning
Notes
  • ENDED = the part has been discontinued (no longer available).
