Single parts, SA 632, trunk for BMW 3 Series E46 318i (2003)

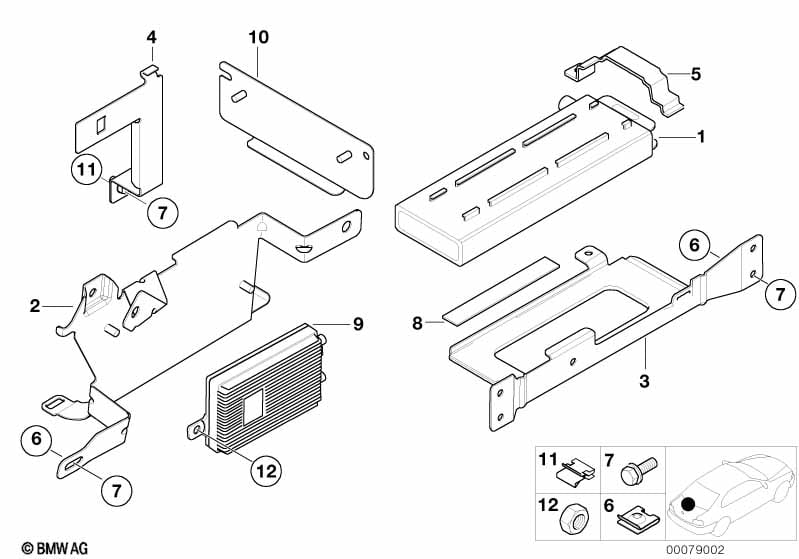

This Single parts, SA 632, trunk technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.

Single parts, SA 632, trunk
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Charging electronics, hands-free MOTOROLA V.3690 1 84216921857 $299.09 ENDED Shop at ECS Tuning
Part is no longer available.
Individual repair remains possible.
Device can be forwarded to the
following address:
Das Autotelefon Flensburg GmbH
Am Sophienhof 8
24941 Flensburg
Phone: +49 1805 94 00 94
Fax: +49 461 95 775 39
Email: info@das-autotelefon.de
02 Metal bracket, amplifier 1 84136908528 $4.78 ENDED Shop at ECS Tuning
For vehicles with
On-board monitor with TV
or
Navigation system, radio
or
Navigation system Professional
or
CD changer for 6 CDs
or
Preparation, BMW 6-CD changer I-bus
S602A=Yes

S606A=Yes

S609A=Yes

S672A=Yes

S692A=Yes
03 Bracket transmitter-receiver 1 84138376241 $5.52 Shop at ECS Tuning
04 Fixing bow f transmitter-receiver MOTOROLA 1 84136902490 $4.62 Shop at ECS Tuning
For vehicles with
On-board monitor with TV
or
Navigation system, radio
or
Navigation system Professional
or
CD changer for 6 CDs
or
Preparation, BMW 6-CD changer I-bus
S602A=Yes

S606A=Yes

S609A=Yes

S672A=Yes

S692A=Yes
05 Attachment clamp for hands-free module 1 84138374359 $2.32 Shop at ECS Tuning
06 Body nut M5 4 61131372033 $1.37 Shop at ECS Tuning
07 Hex bolt M5X14 1 07119902932 $0.53 Shop at ECS Tuning
08 Sealing strip 1 51411970578 $0.22 Shop at ECS Tuning
09 Dual band cable compensator 1 84216907520 $285.00 ENDED Shop at ECS Tuning
For vehicles with
On-board monitor with TV
or
Navigation system, radio
or
Navigation system Professional
or
CD changer for 6 CDs
or
Preparation, BMW 6-CD changer I-bus
S602A=Yes

S606A=Yes

S609A=Yes

S672A=Yes

S692A=Yes
10 Metal bracket, amplifier 1 84136908798 $4.35 ENDED Shop at ECS Tuning
11 Clamp 1 07147654321 $0.17 Shop at ECS Tuning
12 Hex nut with plate M5 1 63259128043 $0.72 Shop at ECS Tuning
Notes
  • ENDED = the part has been discontinued (no longer available).
