Singl.parts f trunk mobile d net for BMW 7 Series E38 L7 (1998)

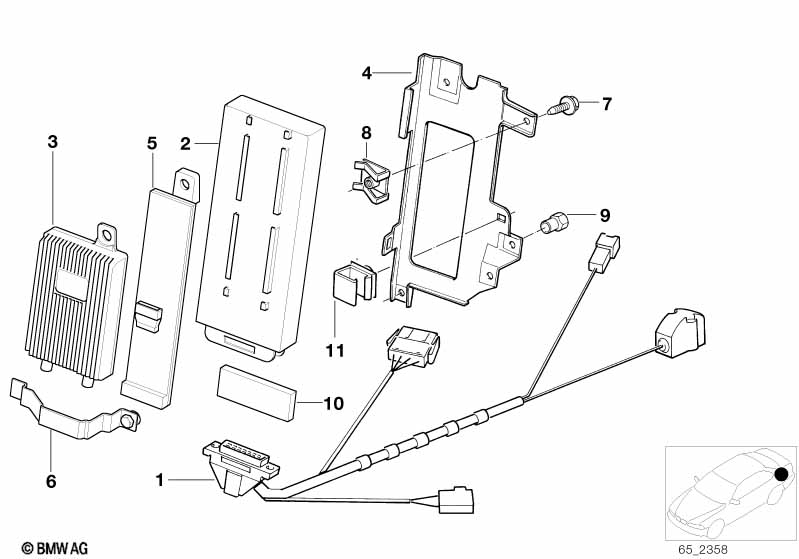

This Singl.parts f trunk mobile d net technical drawing provides a detailed breakdown of the assembly for the 7 Series E38 L7. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.

Singl.parts f trunk mobile d net
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 D network handy connection cable MOTOROLA 1 61128383384 ENDED Shop at ECS Tuning
01 D network handy connection cable SIEMENS 1 61128383385 ENDED Shop at ECS Tuning
For vehicles with
Voice control
S620A=Yes
01 D network handy connection cable MOTOROLA 1 61128383387 ENDED Shop at ECS Tuning
01 D network handy connection cable SIEMENS 1 61128383388 ENDED Shop at ECS Tuning
03 D network handy line compensator MOTOROLA 8700 1 84218372374 Shop at ECS Tuning
03 D network handy line compensator SIEMENS/NOKIA 1 84218386576 ENDED Shop at ECS Tuning
04 Bracket transmitter-receiver 1 84318362432 $5.06 Shop at ECS Tuning
05 D network handy line compensator bracket SIEMENS/NOKIA 1 84138381531 ENDED Shop at ECS Tuning
05 D network handy line compensator bracket MOTOROLA 1 84218372652 ENDED Shop at ECS Tuning
06 Attachment clamp for hands-free module 1 84138374359 $2.32 Shop at ECS Tuning
07 Hex bolt M5X14 3 07119902932 $0.53 Shop at ECS Tuning
08 Body nut M5 2 61131372033 $1.37 Shop at ECS Tuning
09 Blind rivet nut, flat headed M5 2 61136954561 $0.63 Shop at ECS Tuning
10 Sealing strip 1 51411970578 $0.22 Shop at ECS Tuning
11 Bracket, plug connection white 1 61138365550 $1.10 Shop at ECS Tuning
Notes
  • ENDED = the part has been discontinued (no longer available).
