Single parts, SA 627, trunk for BMW 3 Series E46 320i (2000)

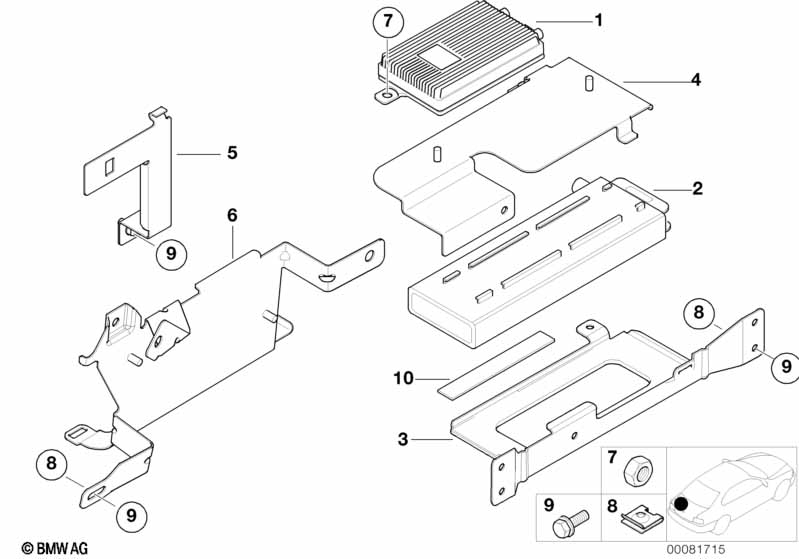

This Single parts, SA 627, trunk technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.

Single parts, SA 627, trunk
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 D network handy interface SIEMENS/NOKIA 1 84216916909 ENDED Shop at ECS Tuning
02 D network handy line compensator SIEMENS/NOKIA 1 84218386576 ENDED Shop at ECS Tuning
03 Bracket transmitter-receiver 1 84138376241 $5.52 Shop at ECS Tuning
04 Bow 1 84136904153 ENDED Shop at ECS Tuning
05 Fixing bow f transmitter-receiver MOTOROLA 1 84136902490 $4.62 Shop at ECS Tuning
06 Bracket transmitter-receiver D-NETZ 1 84138387596 ENDED Shop at ECS Tuning
07 Hex nut with plate M5 2 63259128043 $0.72 Shop at ECS Tuning
08 Body nut M5 4 61131372033 $1.37 Shop at ECS Tuning
09 Hex bolt M5X14 4 07119902932 $0.53 Shop at ECS Tuning
10 Sealing strip 1 51411970578 $0.22 Shop at ECS Tuning
Notes
  • ENDED = the part has been discontinued (no longer available).
