Single parts, SA 627, trunk for BMW 3 Series E46 325i (2005)

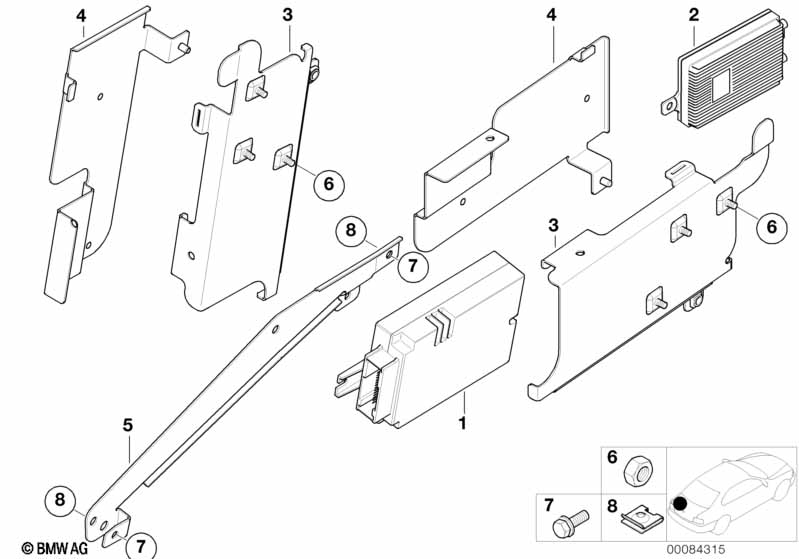

This Single parts, SA 627, trunk technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 325i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2005.

Single parts, SA 627, trunk
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 D network handy interface SIEMENS/NOKIA 1 84216916909 ENDED Shop at ECS Tuning
02 D network handy line compensator SIEMENS/NOKIA 1 84218386576 ENDED Shop at ECS Tuning
03 Fixing bow 1 84138385838 ENDED Shop at ECS Tuning
04 Bracket transmitter-receiver D-NETZ 1 84138387329 ENDED Shop at ECS Tuning
For vehicles with
On-board monitor with TV
or
Navigation system, radio
or
Navigation system Professional
or
CD changer for 6 CDs
S602A=Yes

S606A=Yes

S609A=Yes

S672A=Yes
04 Bracket transmitter-receiver D-NETZ 1 84138379548 ENDED Shop at ECS Tuning
05 Bracket, amplifier hifi/telephone D-NETZ 1 65128378012 $7.90 Shop at ECS Tuning
06 Hex nut with plate M5 4 63259128043 $0.72 Shop at ECS Tuning
07 Hex bolt M5X14 3 07119902932 $0.53 Shop at ECS Tuning
08 Body nut M5 3 61131372033 $1.37 Shop at ECS Tuning
Notes
  • ENDED = the part has been discontinued (no longer available).
