Hands-free telephone for BMW 3 Series E36 318is (1998)

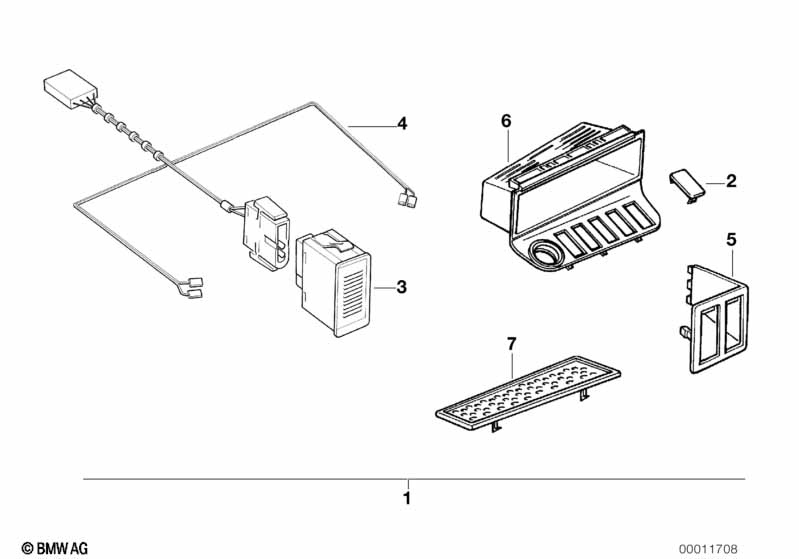

This Hands-free telephone technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 318is. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.

Hands-free telephone
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Hands-free facillty 1 84649408847 ENDED, +core Shop at ECS Tuning
only in conjunction with
-- Changeover module 1 82899406417 ENDED, +core Shop at ECS Tuning
02 Cover SCHWARZ 1 51161963979 $1.54 Shop at ECS Tuning
03 Hands free telephone microphone 1 65618357681 $94.75 ENDED Shop at ECS Tuning
04 Hands free telephone microphone wiring 1 65618357450 $35.99 ENDED Shop at ECS Tuning
05 Switch cover 1 51168130821 $5.51 ENDED Shop at ECS Tuning
06 Insert, storing partition 1 51168130823 $11.05 ENDED Shop at ECS Tuning
07 Storing partition insert 1 51168135903 $9.29 Shop at ECS Tuning
Notes
  • ENDED = the part has been discontinued (no longer available).
  • +core = plus core charge (possibility of a return of the old part)

See Also

SINGLE PARTS F CENTRE CONSOLE TELEPHONE SINGLE PARTS F CENTRE CONSOLE TELEPHONE
SINGLE PARTS F TRUNK CAR TELEPHONE SINGLE PARTS F TRUNK CAR TELEPHONE
HANDS-FREE TELEPHONE HANDS-FREE TELEPHONE
SINGLE PARTS F TELEPHONE ROOF ANTENNA SINGLE PARTS F TELEPHONE ROOF ANTENNA

Frequently Asked Questions

What assembly is shown in the BMW 3 Series E36 318is Hands-free telephone?
This technical diagram illustrates the Hands-free telephone within the Communication systems group for the 3 Series E36 318is produced during 1998. It provides a detailed exploded view of the components, identifying key parts such as the Hands-free facillty (Part #84649408847).
Which models use the hardware listed in this Hands-free telephone?
The hardware and components featured in the Hands-free telephone are specific to the 3 Series E36 318is produced during 1998. These technical specifications ensure that parts like the Hands-free facillty (84649408847) are correctly matched to the vehicle's structural and mechanical requirements.
How do I find specific parts within the Hands-free telephone assembly?
Each item in the Hands-free telephone corresponds to the numbered list below the illustration. For the 3 Series E36 318is, you can identify the Hands-free facillty by locating its position on the schematic, which then links to the official BMW part number 84649408847 for the Communication systems section.
