Hands-free telephone for BMW 5 Series E34 525i (1990)

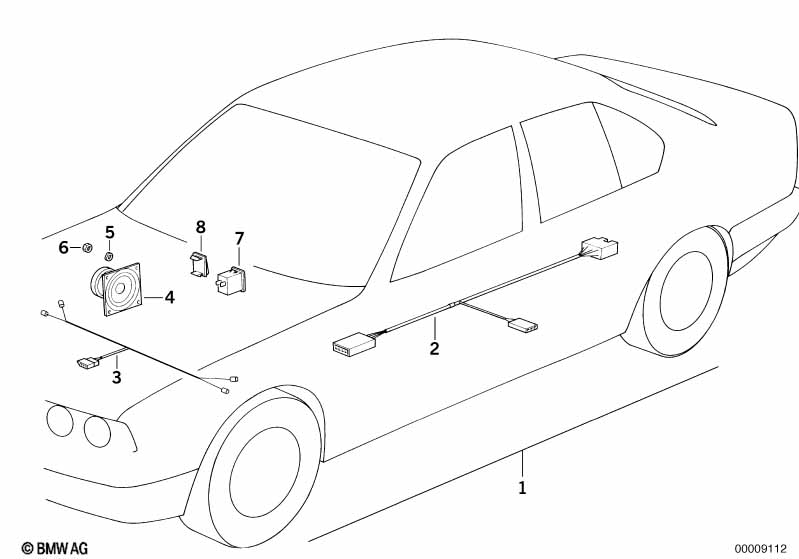

This Hands-free telephone technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 525i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1990.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 02 | Hands free telephone microphone wiring | 1 | 65618351199 | $32.36 | Shop at ECS Tuning | |||||
| 03 | Wiring loudseaker | 1 | 65618355135 | Shop at ECS Tuning | ||||||
| 04 | Loudspeaker | 2 | 65138370935 | $43.06 | Shop at ECS Tuning | |||||
| 05 | Wave washer | B4 | 8 | 07119932033 | $0.09 | Shop at ECS Tuning | ||||
| 06 | Hex nut | M4-A2-70 | 8 | 07119922854 | Shop at ECS Tuning | |||||
| 07 | Hands free telephone microphone | MOTOROLA D-NETZ | 1 | 65618355051 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E34 525i Hands-free telephone?
- This technical diagram illustrates the Hands-free telephone within the Communication systems group for the 5 Series E34 525i produced during 1990. It provides a detailed exploded view of the components, identifying key parts such as the Hands free telephone microphone wiring (Part #65618351199).
- Which models use the hardware listed in this Hands-free telephone?
- The hardware and components featured in the Hands-free telephone are specific to the 5 Series E34 525i produced during 1990. These technical specifications ensure that parts like the Hands free telephone microphone wiring (65618351199) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Hands-free telephone assembly?
- Each item in the Hands-free telephone corresponds to the numbered list below the illustration. For the 5 Series E34 525i, you can identify the Hands free telephone microphone wiring by locating its position on the schematic, which then links to the official BMW part number 65618351199 for the Communication systems section.
